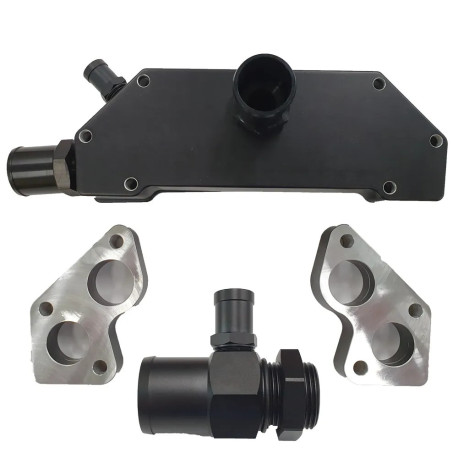

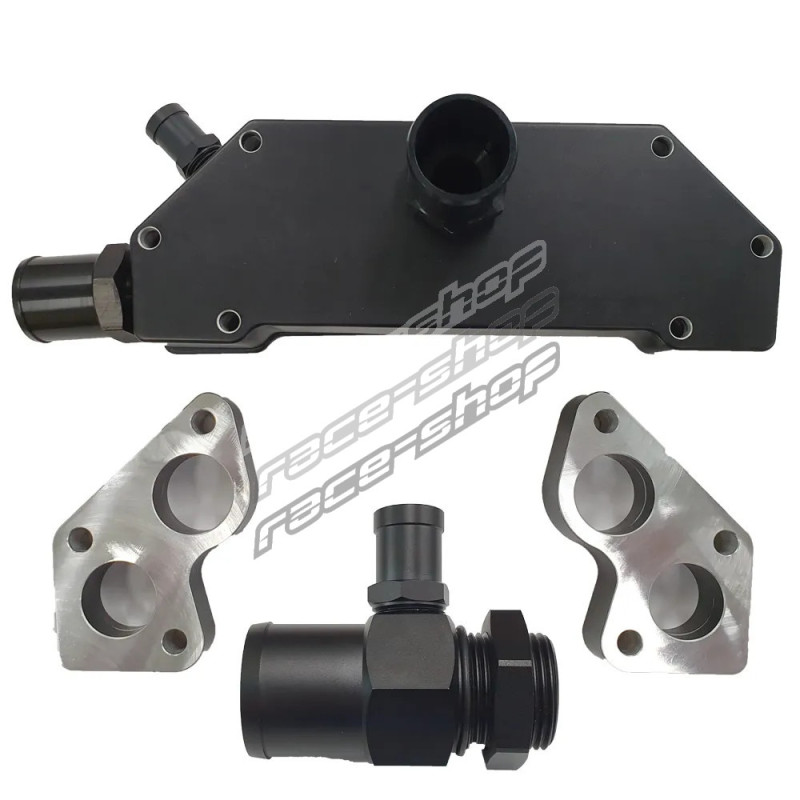

LS Series EWP Block Adapter Suits GM GEN III & IV SB & LSX

Davies, Craig Pty Ltd announces the arrival of its New Plug and Play innovative Remote Electric Water Pump (EWP) Block Adapter to suit the General Motors LS Series family of engines.

This Adapter will supersede Part #8650 as it offers superior fitment options including:

• Ability to fit / located the EWP on the left or right side of the engine thus accommodating different engine configurations.
• Fitment to engines with Air Conditioning systems.

These iconic V8 engines are fast becoming the engine of choice for their lightweight and power. Now, the addition of the Davies Craig Electric Water Pump Block-Adapter Kit, coupled to one of the EWP115, or EWP130/140 or the EWP150 Electric Water Pump Combo Kit will free up the parasitic power loss inherent with mechanical water pumps!

Your Block Adapter is designed to replace the belt driven mechanical water pump and thermostat to complement the installation of Davies Craig remote-mounted Electric Water Pump (EWP).

Part #8670 is tailormade to suit EWP conversion for the LS family of engines.This kit includes most components needed to delete the mechanical water pump on most stock and lightly modified engines.

*Some components may not be suitable for heavily modified engines.

Part #8671 is a streamlined version of the #8670 LS Series Block adapter kit. It is intended for use on heavily modified vehicles or for vehicles that are using Aftermarket or Billet Accessory drive kits.

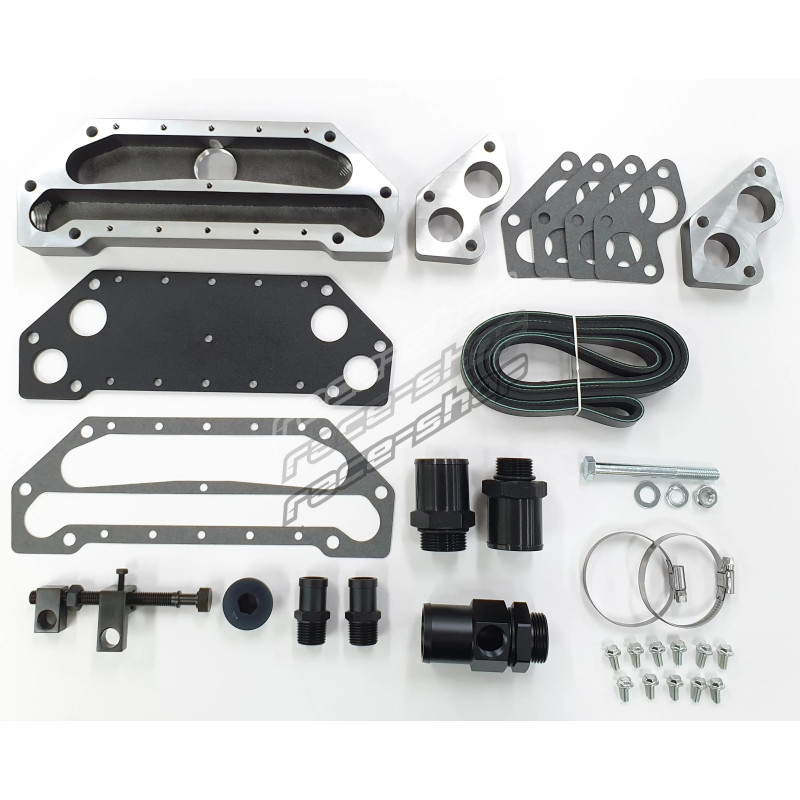

KIT CONTENTS

• Adapter Block: 1
• Adapter Back Plate: 1
• Adapter Spacer: 2
• Plate Gasket: 1
• Spacer Gasket: 4
• Outlet Fitting -16AN to 38mm (1 1/2") Hose: 1
• Inlet fitting -12AN to 38mm (1 1/2") Hose: 1
• Inlet Plug -12AN: 1
• ½” NPT 19mm (3/8”) Hose fitting: 2
• Heater Return fitting: 1
• Hose Clamps: 2
• Screw Tensioner: 1
• 6PK1560 Belt: 1
• M5 Flange Bolt: 11
• Instructions: 1

You may require the below components to complete your installation.

ADDITONAL COMPONENTS (NOT SUPPLIED)

• Davies Craig EWP150 Combo #8970 (recommended)
• Top/Bottom Radiator Hose (Retained)
• Mechanical Water pump Bolts (Retained)
• Heater Hose and joiners (if required)

OPTIONAL COMPONENTS (AVAILABLE SEPARATELY)

• #1024 - Swivel Elbow, -16AN to 38mm (1 1/2") Hose
• #8505 - Elbow Hose, 38mm (1 1/2") ID - 90°
• #8700 - EWP Mounting Bracket
• Thermostat and inline housing
