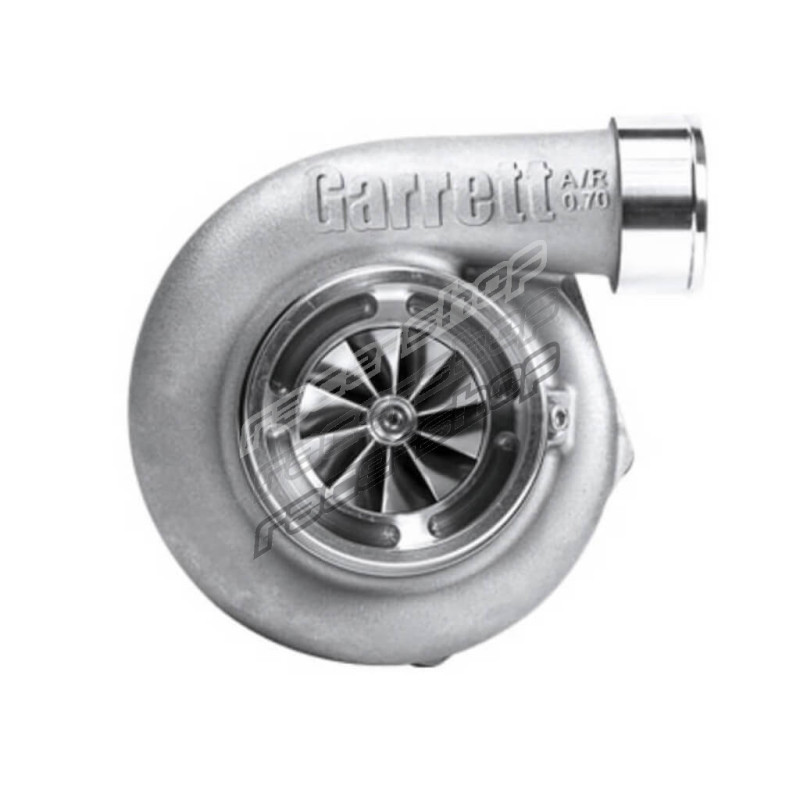

Garrett 851154-5004S Supercore GTX Series GTX3582R, Trim 64

Garrett GTX3582R supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GTX turbochargers.

GTX GEN 2 compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.

Specifications

• Frame: GTX35
• Bearing: ceramic ball bearing
• Rotation: standard
• Compressor wheel: 66 mm inducer, 82 mm exducer, 64 trim, 0.7 A/R
• Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim
• Turbine wheel material: Inconel alloy
• Power: up to 900 HP
• Displacement: 2.0-4.5 L

Features

• Gen 2 Aero forged milled compressor wheel
• High-Flow compressor housing with integrated speed sensor port
• Rotation: Standard
• Dual ceramic ball bearing cartridges
• Inconel turbine wheel
• Water and oil cooled
• Power Rating: 450 - 900 HP
