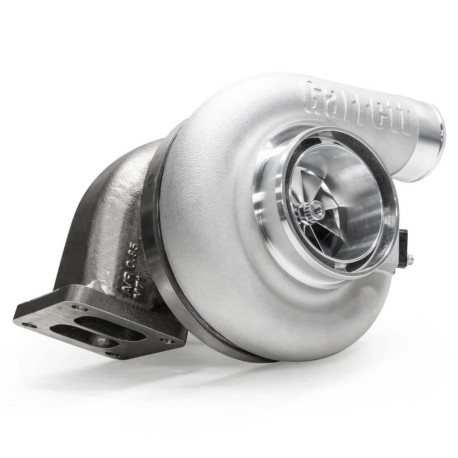

Garrett 860777-5002S Supercore G-Series G40-1150, Trim 65

Garrett G40-1150 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.

Garrett G-series turbochargers feature the latest innovations in turbocharger technology. Compressors and turbines have the highest capacity and aerodynamics available today. Countless engineering hours have been spent to create the perfect blend of efficiency and performance in a compact package.

Specifications

• Frame: G40
• Bearing: ceramic ball bearing
• Rotation: standard
• Compressor wheel: 71 mm inducer, 88 mm exducer, 65 trim, 0.8 A/R
• Turbine wheel: 77 mm inducer, 70 mm exducer, 84 trim
• Turbine wheel material: Inconel alloy
• Power: up to 1150 HP
• Displacement: 2.0-6.0 L

Fits & compatible parts

• Compatible turbochargers: GTX4088R

Features

• G-Series compresser aero increases flow up to 35% (compared to GTX4088R)
• High-Flow compressor housing with integrated easy plug speed sensor port
• Rotation: Standard (Clockwise)
• Dual ceramic ball bearing cartridges
• Includes -4AN oil restrictor fitting with 1mm orifice
• Lightweight aluminium backplate
• Four large water jacket ports
• Twin piston rings at compressor and turbine site
