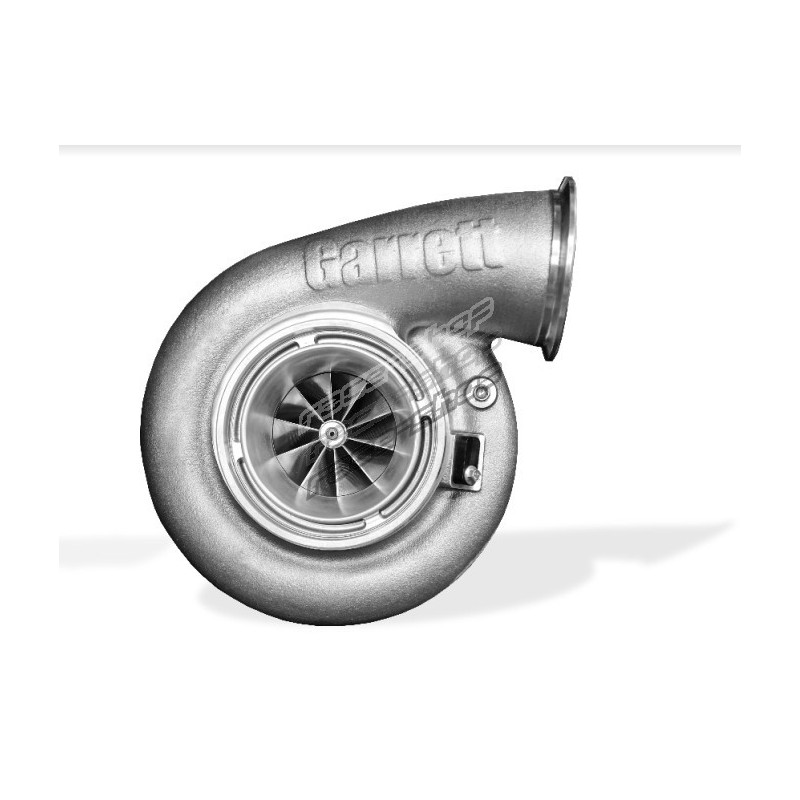

Garrett 860778-5006S Supercore G-Series G42-1450, Trim 65

Garrett G42-1450 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.

Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) .

The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure.

Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.

Specifications

• Frame: G42
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 79 mm inducer, 98 mm exducer, 65 trim, 0.85 A/R
• Turbine wheel: 82 mm inducer, 75 mm exducer, 84 trim
• Max shaft speed: 165 krpm
• Power: up to 1450 HP
• Displacement: 2.0-8.0 L

Fits & compatible parts

• Compatible turbochargers: GTX42, G25
• Related & compatible part numbers: 781328-0003, 781328-0004

Features

• Garrett G42-1450
• 131 Lbs/Min compressor flow
• 0.85 A/R comp housing
• V-band comp outlet 4.2 inch / 107mm (Same as GTX42)
• 5 inch / 127mm compressor inlet (Same as GTX42)
• Water fittings included (-6an fittings *same as G25)
• Stainless steel turbine housings rated up to 950 deg C
• Compressor Housing
