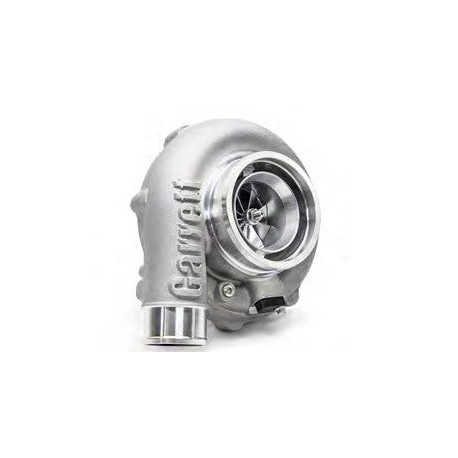

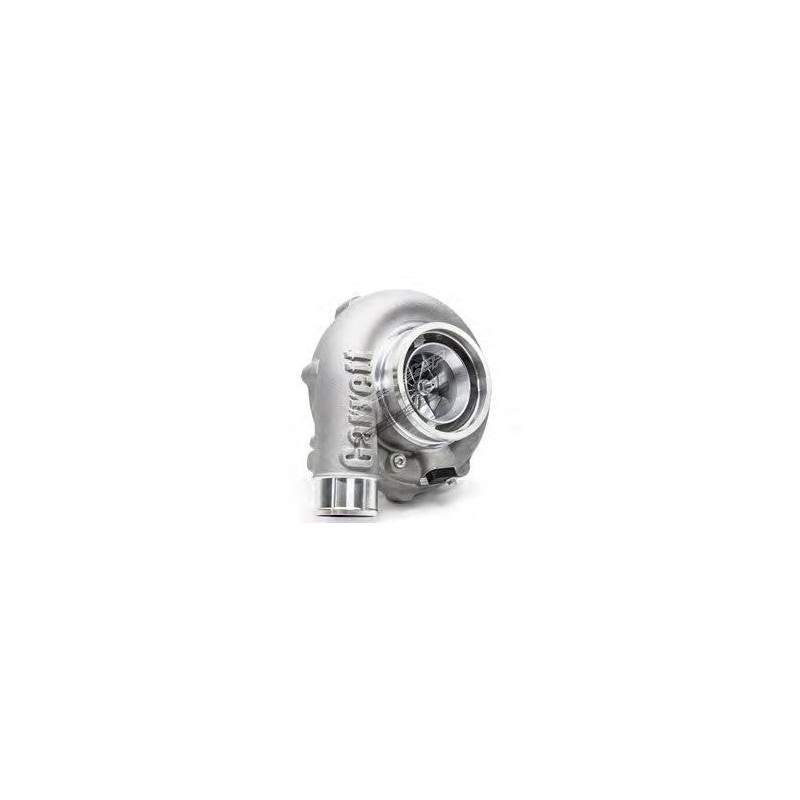

Garrett 880694-5001S Supercore G-Series G30-660, Trim 65

Garrett G30-660 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.

Garrett G-Series Turbochargers series turbochargers feature the latest innovations in turbocharger technology.

Advanced compressor and turbine aero offer enthusiasts a wide range of performance boosting solutions for 2.0L - 3.5L engine platforms.

Standard and reverse rotation options are offered with a variety of turbine housing configurations making it easy to select the right turbocharger for your application.

Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) .

Specifications

• Frame: G30
• Bearing: ball bearing
• Rotation: reverse
• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim, 0.7 A/R
• Turbine wheel: 60 mm inducer, 55 mm exducer, 84 trim
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 165 krpm
• Power: up to 660 HP
• Displacement: 2.0-3.5 L

Fits & compatible parts

• Related & compatible part numbers: 781328-0004

Features

• A turn ahead of the competition
• New G Series compressor wheel aerodynamics
• Fully machined speed-sensor and pressure ports
• Standard and reverse rotation configurations available
• Oil restrictor and water fittings included
• One piece center housing and backplate for increased durability
• 4 water jacket ports for customizable installation
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
