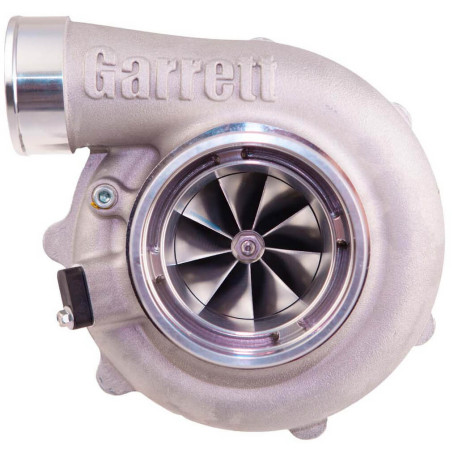

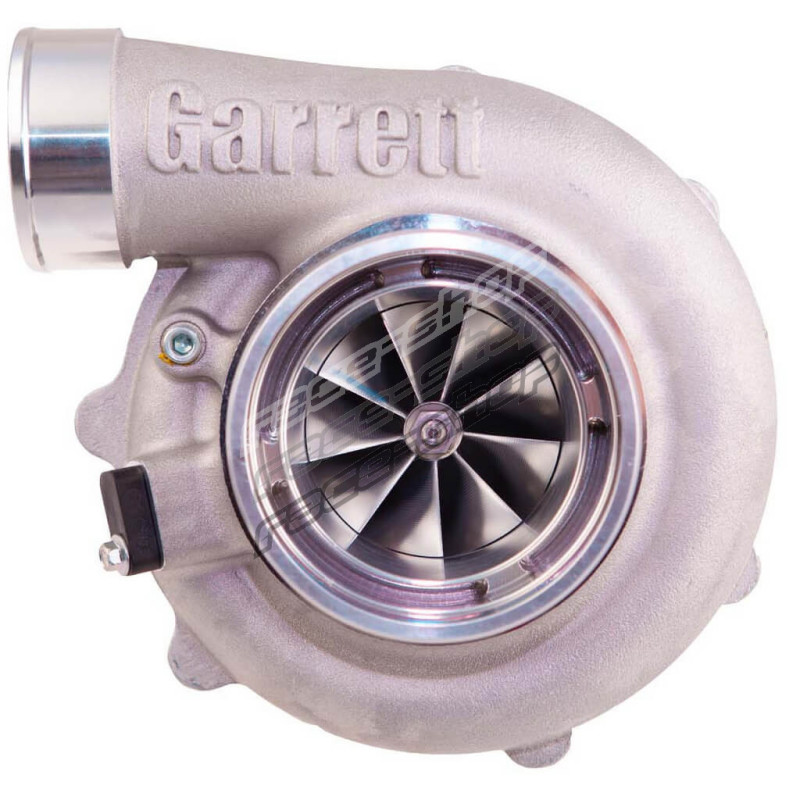

Garrett 880696-5002S Supercore G-Series G35-1050, Trim 65

Garrett G35-1050 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding G-Series turbochargers.

Garrett G-series turbochargers feature the latest innovations in turbocharger technology. Compressors and turbines have the highest capacity and aerodynamics available today. Countless engineering hours have been spent to create the perfect blend of efficiency and performance in a compact package.

Specifications

• Frame: G35
• Bearing: ceramic ball bearing
• Rotation: reverse
• Compressor wheel: 68 mm inducer, 84 mm exducer, 65 trim, 0.75 A/R
• Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim
• Turbine wheel material: MAR-M alloy
• Power: up to 1050 HP
• Displacement: 2.0-5.5 L

Features

• Latest CFD-optimised, forged milled compressor wheel
• High-Flow compressor housing with integrated easy plug speed sensor port
• Rotation: Reverse (Counterclockwise)
• Dual ceramic ball bearing cartridges
• Includes -4AN oil restrictor fitting with 1mm orifice
• Four large water jacket ports
• Twin piston rings at compressor and turbine site
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
