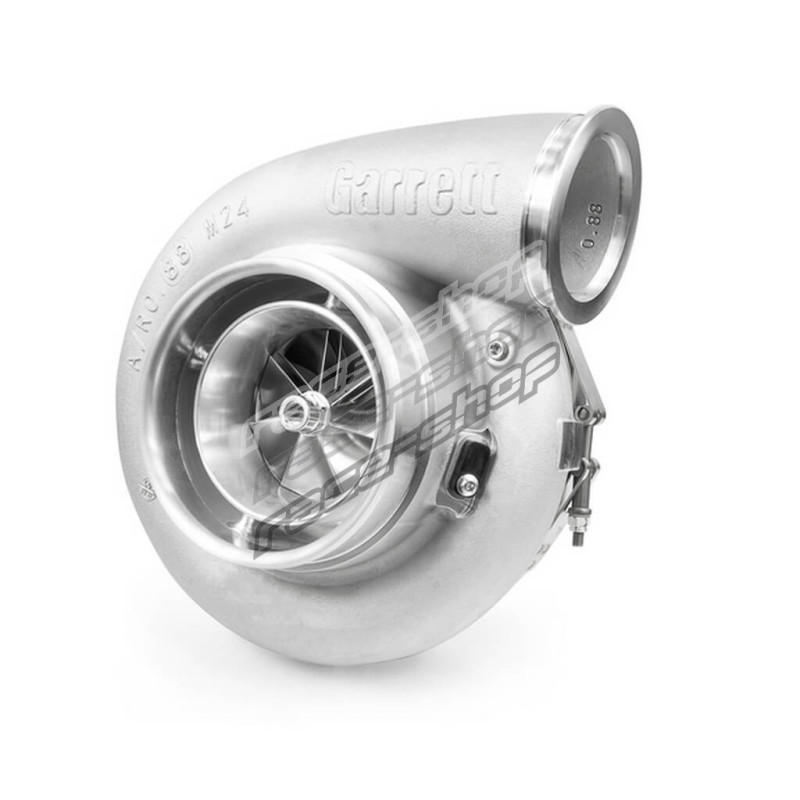

Garrett 934174-5001S Supercore G-X Race GXR55-88, Trim 44

Garrett GXR55-88 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GXR (G-X Race) turbochargers.

Reputations are forged through skill, speed and consistency.

Racers push their skills, their cars, and their turbos to extreme limits.

When the stakes are high, only the best turbo will take you to the finish line.

Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.

Specifications

• Frame: GXR55
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 88.9 mm inducer, 133 mm exducer, 44 trim, 0.88 A/R
• Turbine wheel: 112 mm inducer, 103 mm exducer, 86 trim
• Power: up to 2350 HP
• Displacement: 3.0-12.0 L

Fits & compatible parts

• Compatible turbochargers: G55-1950

Features

• Product Features
• XBoost Technology increases power and performance
• +21% compressor flow (GXR55-88 compared to G55-1950)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
• Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
