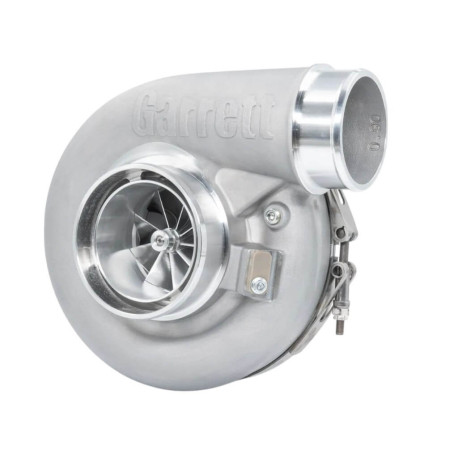

GARRETT 938339-5001S SUPERCORE G-SERIES II G42-1325C

Description GARRETT 938339-5001S Supercore G-Series II G42-1325c

The Garrett G42-1325C G-Series II Compact Supercore turbocharger delivers advanced performance in a more compact format, specifically designed for motorsport and high-output applications. Engineered with the latest compressor aerodynamics, this turbo provides up to 10% more flow than Gen I models, while retaining compatibility with existing G-Series I housings. Ideal for builds requiring space-conscious solutions without compromising output, the G42-1325C supports a wide powerband from 475 to 1325 horsepower and is optimized for engines ranging from 2.0L to 7.0L displacement.

Specifications

• Compressor Inducer: 73 mm
• Compressor Exducer: 91 mm
• Compressor Wheel Material: Forged Fully Machined
• Compressor A/R: 0.88
• Turbine Inducer: 82 mm
• Turbine Exducer: 75 mm
• Turbine Trim: 84
• Turbine Wheel Material: Inconel
• Frame Size: 42
• Rotation: Standard
• Cooling: Oil & Water Cooled
• Minimum Horsepower: 475 HP
• Maximum Horsepower: 1325 HP
• Minimum Engine Displacement: 2.0 L
• Maximum Engine Displacement: 7.0 L
• Maximum Allowable Turbocharger Speed: 120,000 RPM

Product category: Turbocharger
