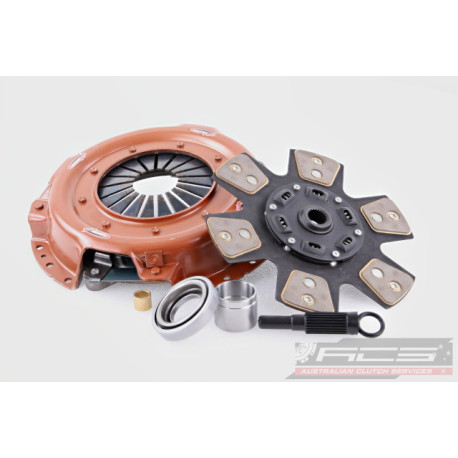

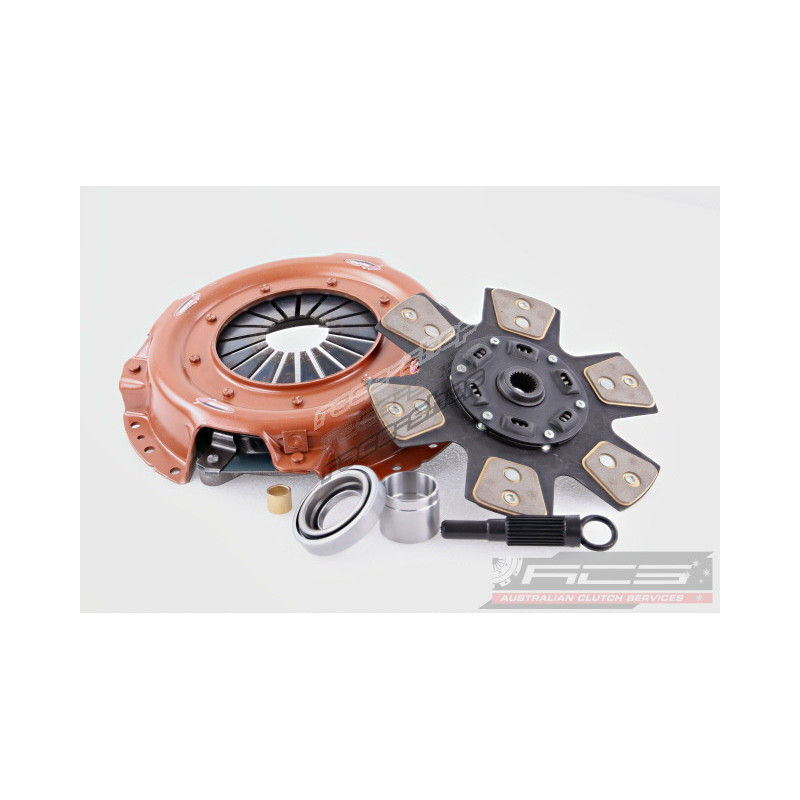

KNI28001-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic 690Nm 900KG (30%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 690Nm
• Clamp load 900Kg 30% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI28001-1B

Weight: 12.32

Note:

Torque (Nm): 690
Clamp Load: 900KG (30% inc.)
Flywheel Step: Flat
Clutch Disc Diameter (mm): 275
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25,4
Recommended for: High Speed 4x4 Trial or Desert Race - Stage 2
Design: Single Plate
Diameter [mm]: 275
Stage: Stage 2

Suitable for:

- Nissan/Patrol/G61 | 4.0 4WD/1976.01-1980.12/P40 3956 Petrol 108 kW 147 BHP (1976.01 - 1980.12)
Nissan/Patrol/G60 | 4.0 4WD/1976.01-1980.12/P40 3956 Petrol 108 kW 147 BHP (1976.01 - 1980.12)
Nissan/Patrol/K160 | 3.3 TD/1983.07-1988.08/SD33T 3246 Diesel 81 kW 110 BHP (1983.07 - 1988.08)
Nissan/Patrol/G160 | 3.3 TD 4WD/1984.01-1987.12/SD33T 3246 Diesel 81 kW 110 BHP (1984.01 - 1987.12)
Nissan/Patrol/G160 | 4.0 4WD/1980.06-1987.12/P40 3956 Petrol 108 kW 147 BHP (1980.06 - 1987.12)
Nissan/Patrol/G160 | 4.2 4WD/1980.06-1985.12/TB42 4169 Petrol 85 kW 116 BHP (1980.06 - 1985.12)
Nissan/Patrol/Y60 | 4.2 D/1988.11-2000.09/TD42 4169 Diesel 85 kW 116 BHP (1988.11 - 2000.09)
Nissan/Patrol/W160 | 3.3 TD/1983.07-1988.08/SD33T 3246 Diesel 81 kW 110 BHP (1983.07 - 1988.08)
Nissan/Patrol/W160 | 4.0/1980.06-1988.01/P40 3956 Petrol 108 kW 147 BHP (1980.06 - 1988.01)
Nissan/Patrol/K260 | 4.2/1992.02-1997.12/TB42E 4169 Petrol 129 kW 175 BHP (1992.02 - 1997.12)
Nissan/Patrol/K260 | 4.2/1988.01-1995.12/TB42E 4169 Petrol 125 kW 170 BHP (1988.01 - 1995.12)
Nissan/Patrol/K260 | 4.2 D/1988.01-1997.12/TD42 4169 Diesel 85 kW 116 BHP (1988.01 - 1997.12)
Nissan/Patrol/Y60 | 4.2 Cat/1988.11-1998.02/TB42E 4169 Petrol 121 kW 165 BHP (1988.11 - 1998.02)
Nissan/Patrol/Y60 | 4.2 D 4WD/1992.07-1994.05/TD42 4169 Diesel 92 kW 125 BHP (1992.07 - 1994.05)
Nissan/Patrol/Y60 | 4.2 D 4WD/1988.11-1997.06/TD42 4169 Diesel 85 kW 116 BHP (1988.11 - 1997.06)
Nissan/Patrol/Y60 | 4.2 Efi 4WD/1988.02-1995.12/TB42E 4169 Petrol 129 kW 175 BHP (1988.02 - 1995.12) ,
