RWD POWER Oil Pressure, Oil Temperature and Fuel Pressure Sensor Kit with Wiring for DASH5 / DASH7

Sensor wiring for the RWD POWER DASH7 and DASH5 displays, supplied with sensors and ready to be connected. All you have to do is screw in the sensors.

The set includes:

• 10 pin connector (for analog inputs)
• Wiring for connecting oil pressure, oil temperature and fuel pressure sensors

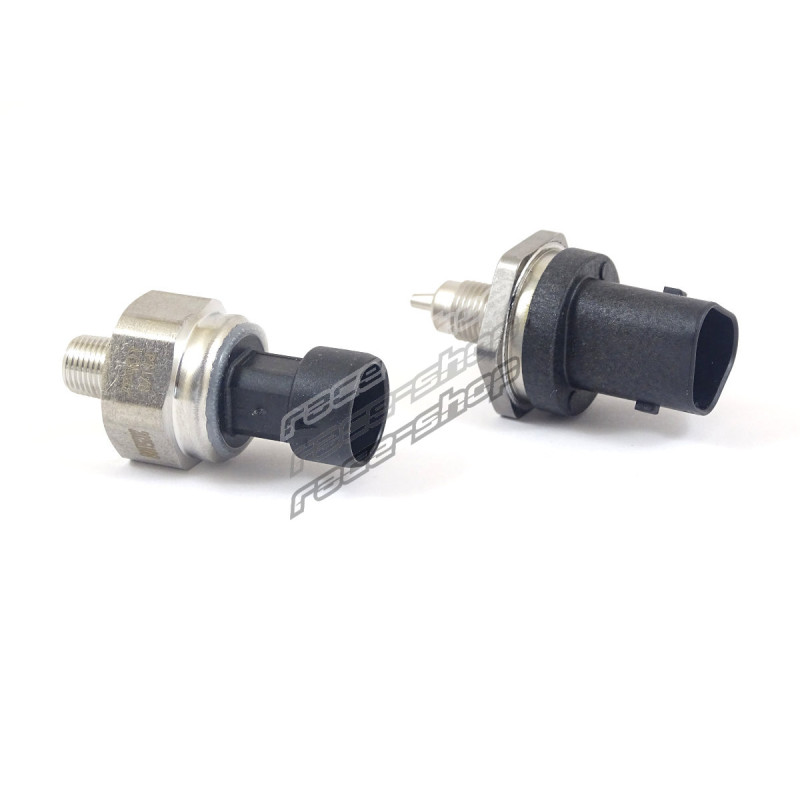

• Bosch oil pressure and temperature sensor
• Fuel pressure sensor

Threads:

• Bosch oil pressure and temperature sensor: M10x1
• Fuel pressure sensor: 1/8 NPT

Note: both threads have an almost identical pitch, but 1/8 NPT is a tapered thread while M10x1 is a straight thread. Pay attention when choosing the reducers and sockets for screwing into the engine, thermostat or adapters.
