RWD POWER CAN Bus Wiring Harness for DASH5 / DASH7

CAN wiring for the RWD POWER DASH7 and DASH5 displays. The harness comes pre-assembled, so connecting the display to the CAN bus takes only four wires – power, ground, CAN L and CAN H.

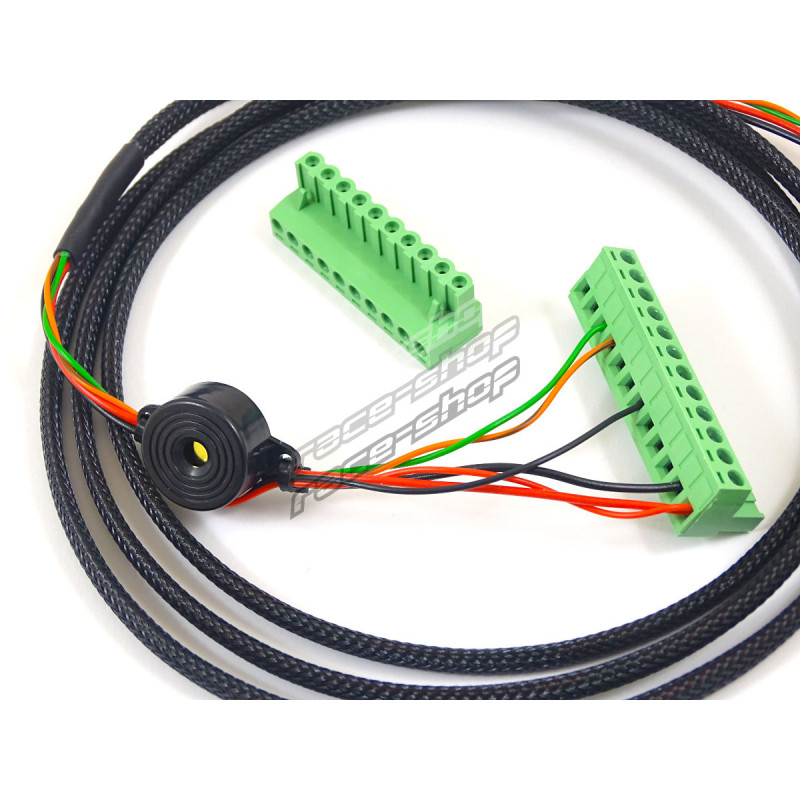

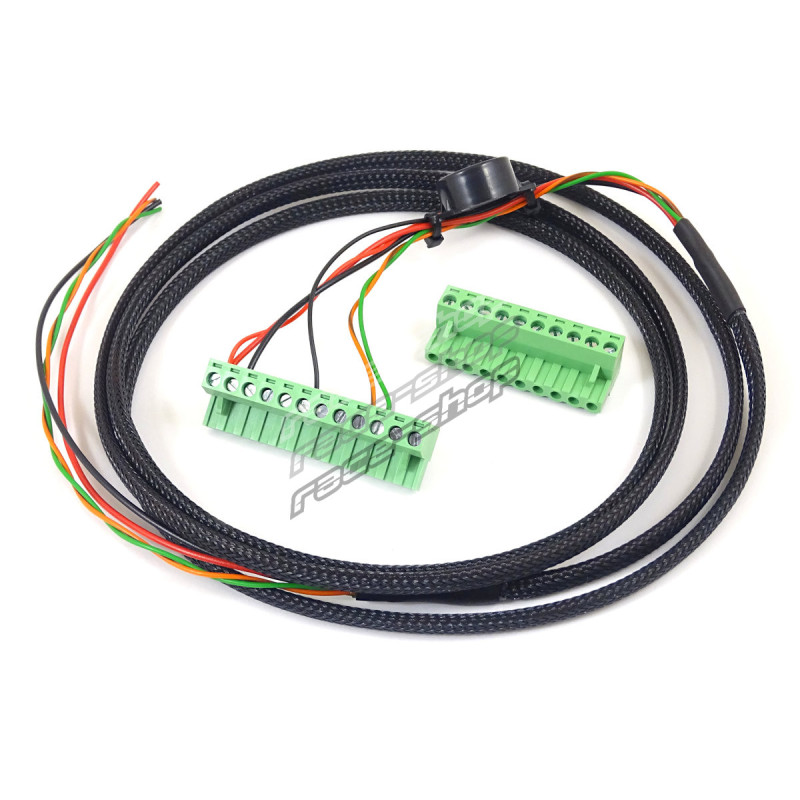

The set includes:

• 10 pin connector (for analog inputs)
• 12 pin connector with connected CAN signals, ALARM (buzzer) and power supply
• Red wire (+12 V power supply after ignition)
• Black wire (ground – GND)
• Green wire – CAN L
• Orange wire – CAN H
• Buzzer (alarm speaker)
