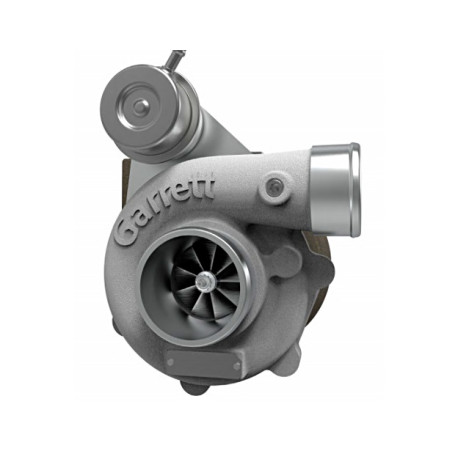

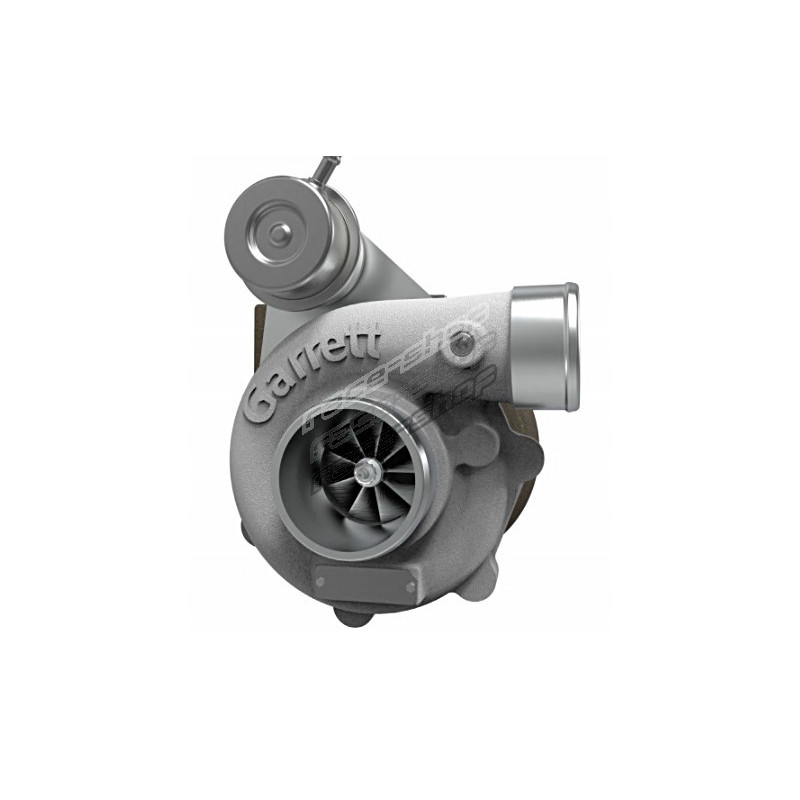

Garrett 896053-5003S Turbocharger GBC Series GBC20-300, 0.55 A/R, Wastegated

Garrett GBC20-300 performance turbocharger with a wastegated T25 turbine housing.

GBC17, 20, 22 are outline interchangeable for use as stage upgrades.

Forged, fully-machined compressor wheels are offered in inducer sizes of 34mm, 36mm, 39mm, and 44mm.

The oil cooled center housing features the latest generation of journal bearing rotor group.

Club Line turbochargers are fully assembled with an internally wastegated turbine housing.

Specifications

• Frame: GBC20
• Bearing: journal bearing
• Rotation: standard
• Compressor wheel: 39 mm inducer, 52 mm exducer, 0.59 A/R
• Turbine wheel: 47 mm inducer, 42 mm exducer, 84 trim, 0.55 A/R
• Turbine housing flange: T25
• Wastegate: internal (wastegated housing)
• Power: up to 300 HP
• Displacement: 0.8-2.0 L

Fits & compatible parts

• Compatible turbochargers: GBC14-200, GBC17-250, GBC22-350, GBC17

Features

• Garrett boost / club line
• Garrett boost club line turbocharger gbc20-300

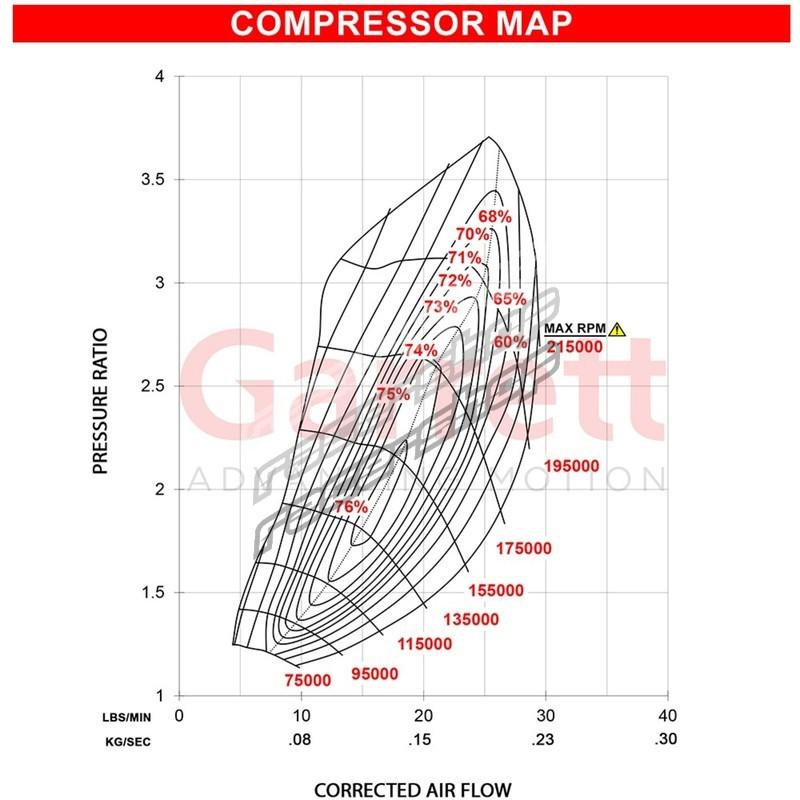

• Compressor Specs
• CWH EXDUCER = 52 mm
• CWH INDUCER = 39 mm
• FLOW: 30lbs/min
• TWH EXDUCER = 47 mm
• TWH INDUCER = 42 mm
