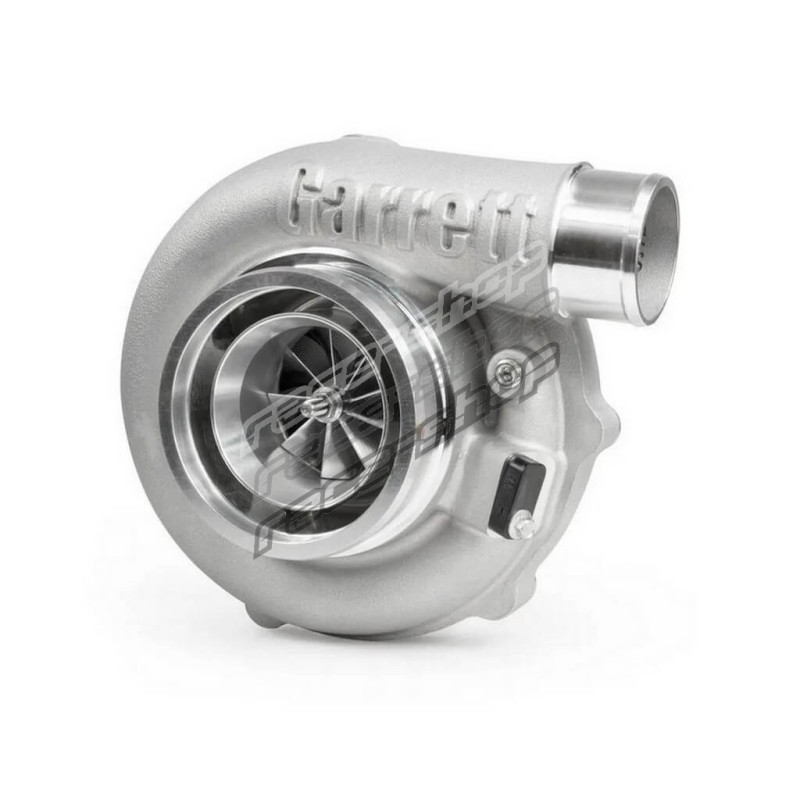

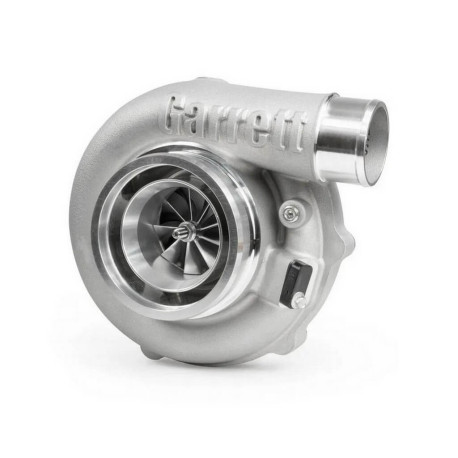

Garrett 934124-5001S Turbocharger G-Series II G35-990, 0.83 A/R, Wastegated

Garrett G35-990 performance turbocharger with a wastegated V-Band turbine housing.

Now you can harness the power of motorsport legends and experience the durability of champions in your car with the new G-Series II universal Performance Turbos line from Garrett.

Specifications

• Frame: G35
• Bearing: ball bearing
• Rotation: standard

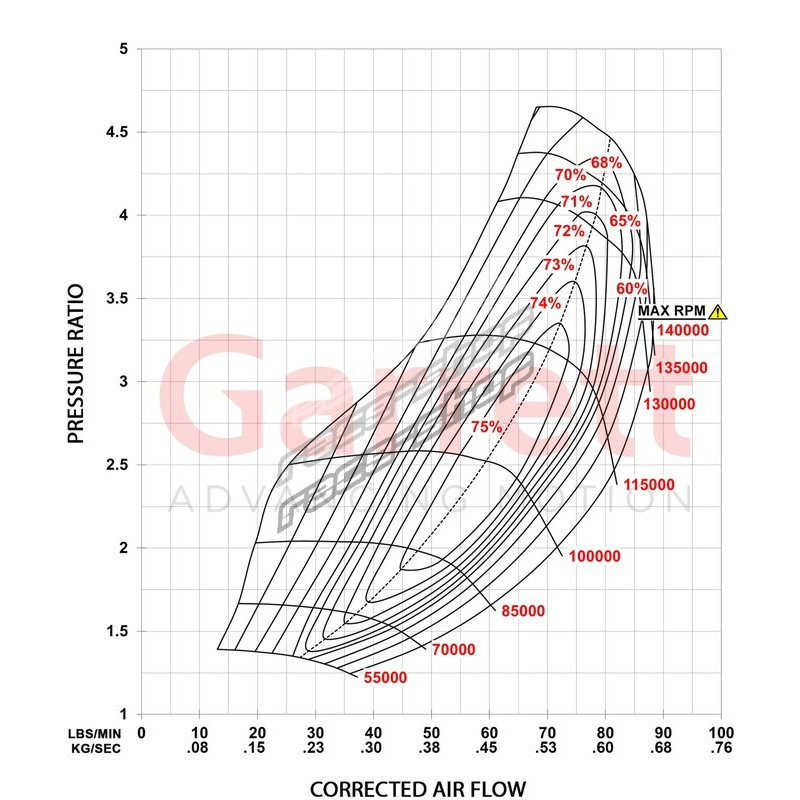

• Compressor wheel: 62 mm inducer, 76 mm exducer, 65 trim, 0.72 A/R

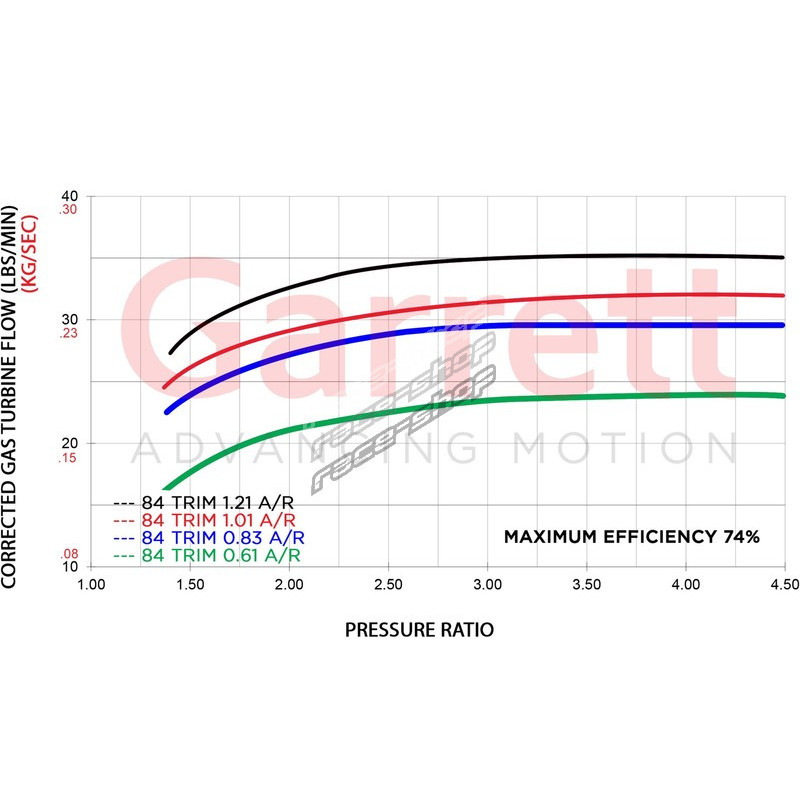

• Turbine wheel: 68 mm inducer, 62 mm exducer, 84 trim, 0.83 A/R
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 140 krpm
• Turbine housing flange: V-Band / V-Band
• Wastegate: internal (wastegated housing)
• Power: up to 990 HP
• Displacement: 2.0-5.5 L

Features

• G-Series II G35-990 standard rotation turbo is fully assembled and calibrated with a 0.5 bar actuator

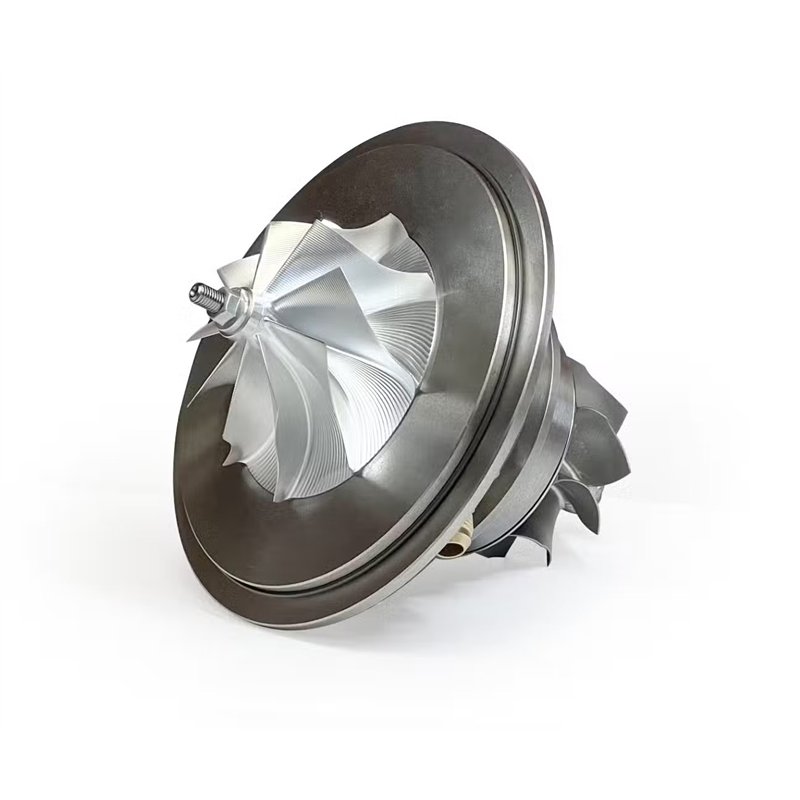

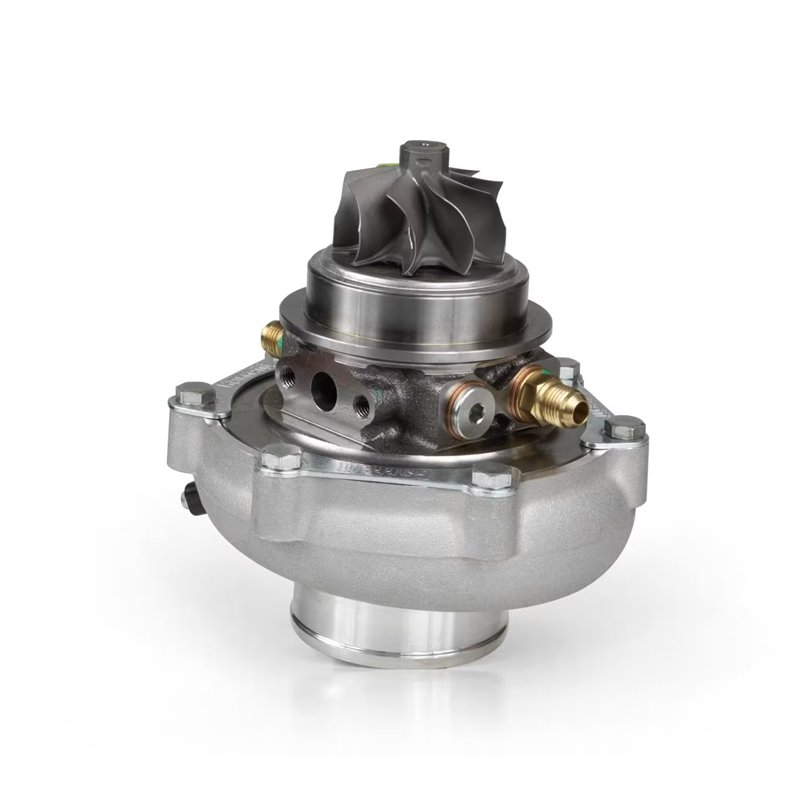

• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings

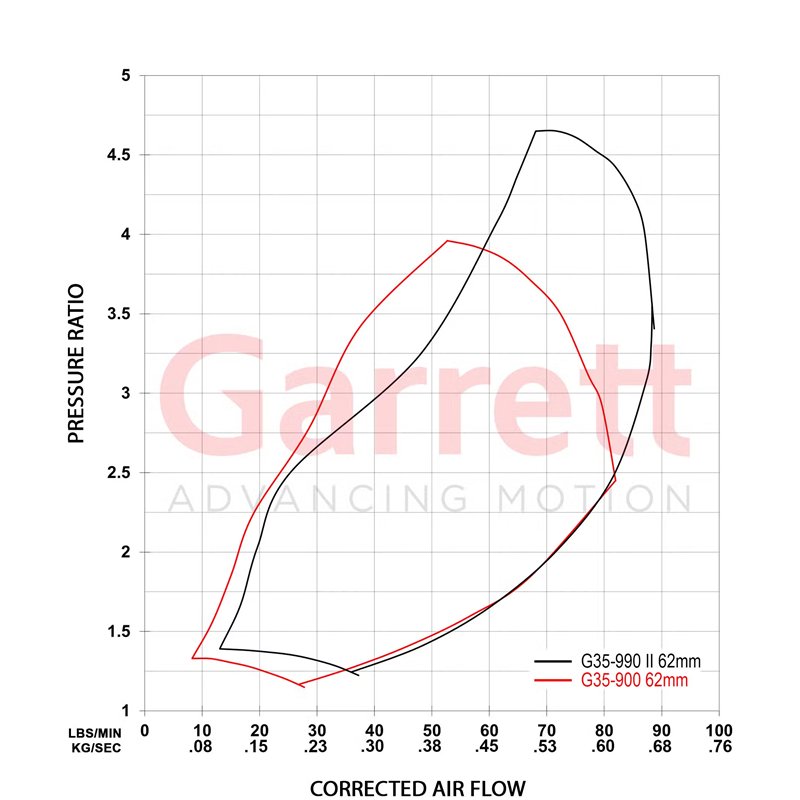

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Increased efficiency at high flow rates
• 62mm Compressor Inducer / 76mm exducer
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
• Stainless steel turbine housings are rated up to 1050C degree
