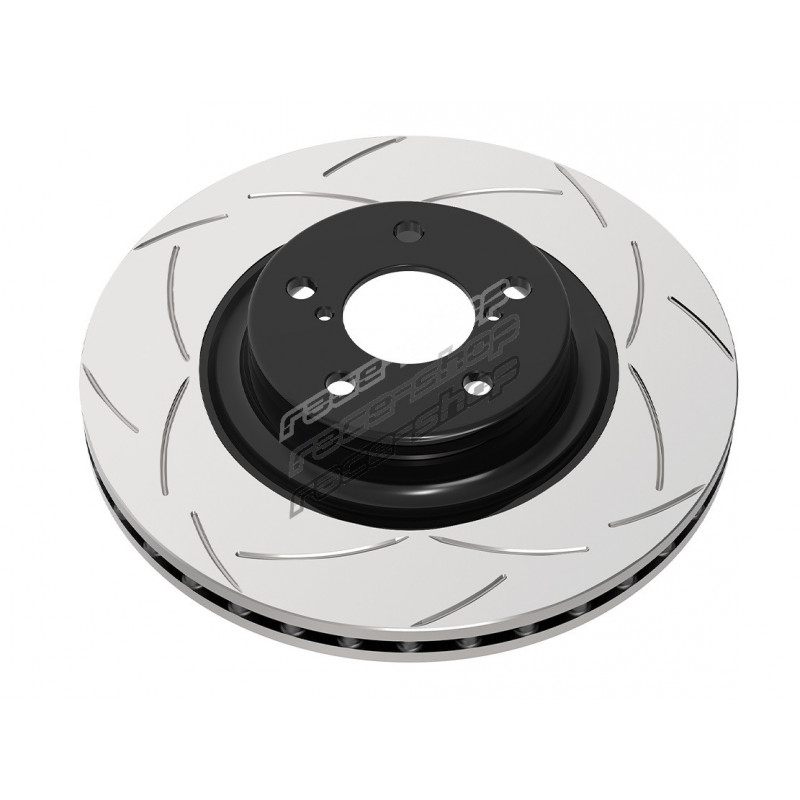

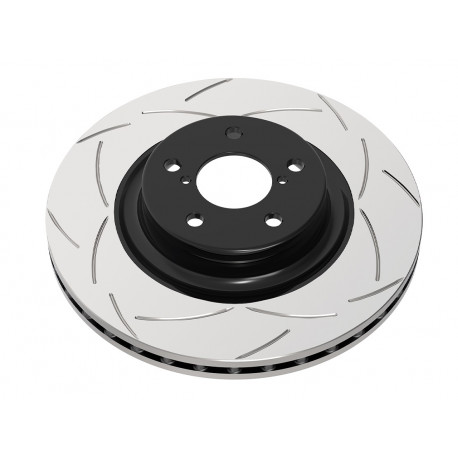

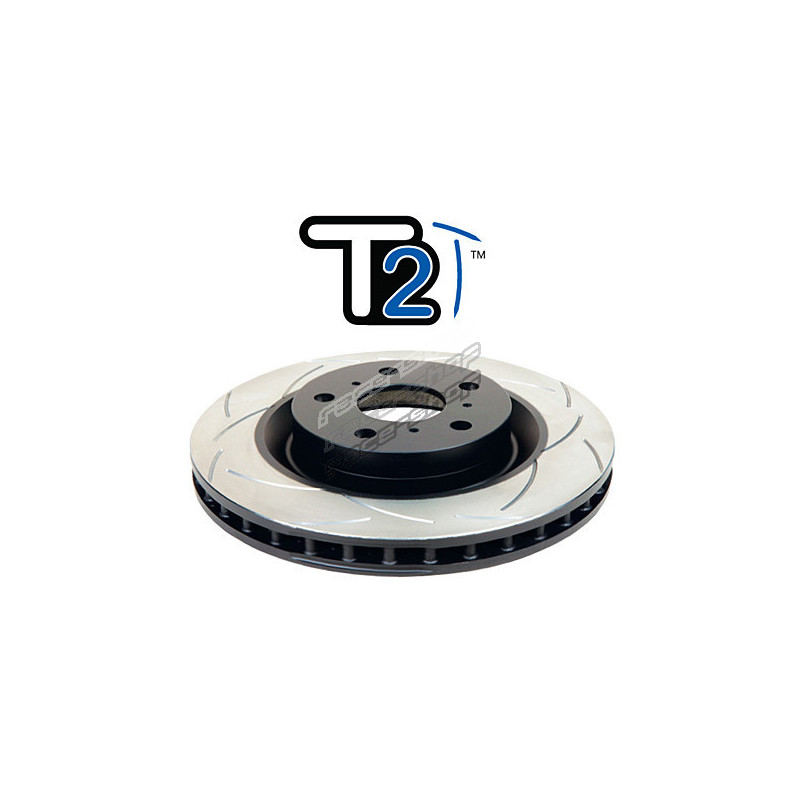

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 302
Disc Vent: Vented
Number of Holes: 5
Inner Diameter [mm]: 79
Minimum Thickness [mm]: 20,4
Thickness [mm]: 22
Height [mm]: 76.4
Stage: Stage 2
ECE R90 number: E11*90R02/06*60520*00

Suitable for:

Front - BMW/5 Series (E34) 518/1.8 Saloon (1988-1996) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 518/1.8 Touring (1991-1997) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 520/2.0 Saloon (1988-1996) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 520/2.0 Touring (1991-1997) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 525/2.5 (1988-1996) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 525/2.5 TD Touring (1991-1996) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 530/3.0 (1988-1996) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/5 Series (E34) 535/3.5 (1988-1992) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/7 Series (E32) 730/3.0 (1987-1994) Brake Pads: DB1131, Brake Caliper: ATE Front - BMW/7 Series (E32) 730/3.0 218BHP V8 (1992-1994) Brake Pads: DB1131, Brake Caliper: ATE
