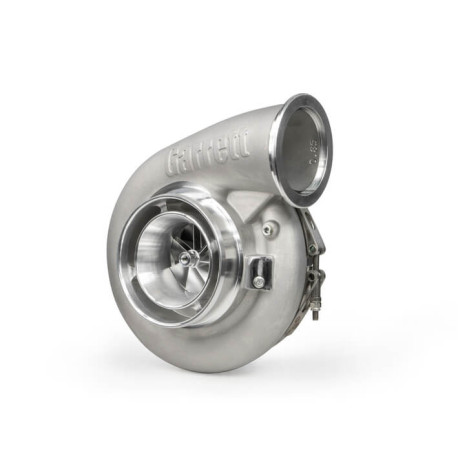

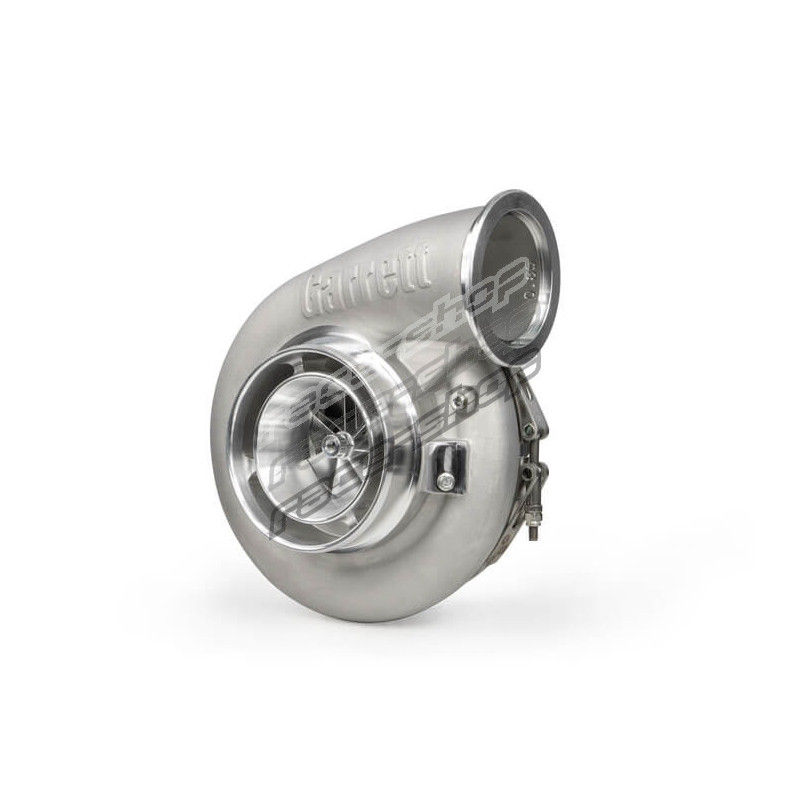

Garrett 934173-5001S Supercore G-X Race GXR42-68, Trim 45

Garrett GXR42-68 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GXR (G-X Race) turbochargers.

When the stakes are high, only the best turbo will take you to the finish line. Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.

Specifications

• Frame: GXR42
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 68.9 mm inducer, 102 mm exducer, 45 trim, 0.85 A/R
• Turbine wheel: 82 mm inducer, 75 mm exducer, 84 trim
• Power: up to 1400 HP
• Displacement: 2.0-7.0 L

Fits & compatible parts

• Compatible turbochargers: GXR45-67, G45-1125, GXR45-73, G45-1350

Features

• Product Features
• XBoost Techology increases power and performance
• +29% compressor flow (GXR45-67 compared to G45-1125)
• +11% compressor flow (GXR45-73 compared to G45-1350)
• Enhanced pressure ratio capability and higher boost pressure
• Increased efficiency at high flow rates
• Lower intake temperature
• Lightweight aluminum backplate
