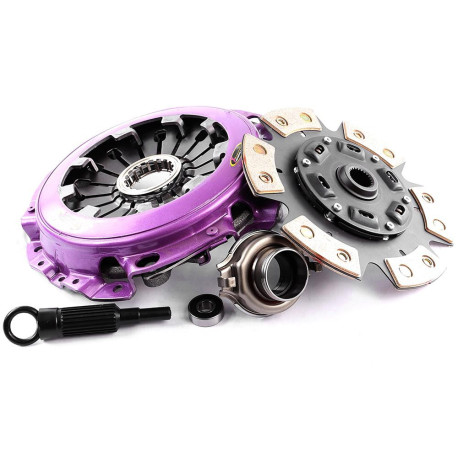

KSU23006-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 840Nm 1150kg (40%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 840Nm
• Clamp load 1150kg 40% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KSU23006-1B

Weight: 8.16

Note:

Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 840
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 2
Clamp Load: 1150KG (40% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate - 5 Speed Gearbox

Suits 5 Speed Gearbox

Suitable for:

- Subaru/Impreza/2.0 i Turbo AWD (GF8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , Suits 5 Speed Gearbox
Subaru/Forester/2.0 S Turbo AWD (SF5)/1998.06-2001.04/EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) , Suits 5 Speed Gearbox
Subaru/Forester/2.0 S Turbo AWD (SF5)/2001.04-2002.09/EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) , Suits 5 Speed Gearbox
Subaru/Forester/2.0 S Turbo AWD (SG5)/2002.02-2005.05/EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 5 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , Suits 5 Speed Gearbox
Subaru/Legacy/2.0 AWD (BE5)/2002.02-2003.06/EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , Suits 5 Speed Gearbox
Subaru/Legacy/2.0 AWD (BE5)/2002.06-2003.08/EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) , Suits 5 Speed Gearbox
Subaru/Impreza/2.0 Turbo AWD (GC8)/1996.12-2000.12/EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) , Suits 5 Speed Gearbox
Subaru/Legacy/2000 Turbo 4WD (BC5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , Suits 5 Speed Gearbox
Subaru/Legacy/2000 Turbo Super 4WD (BF5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , Suits 5 Speed Gearbox
Subaru/Forester/2.5 AWD (SG9)/2003.12-2005.05/EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) , Suits 5 Speed Gearbox
Subaru/Forester/2.5 Prodrive Performance Pack AWD/2005.05-2005.09/EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) , Suits 5 Speed Gearbox
