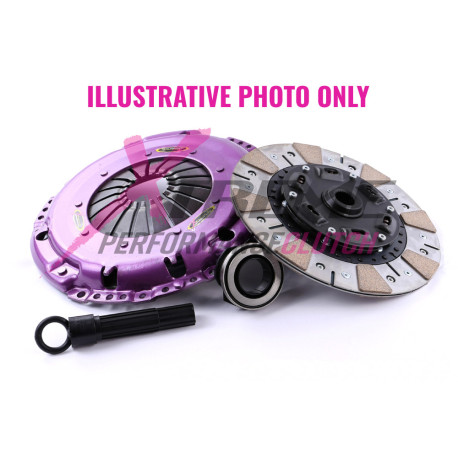

KMI23010-1C Clutch Kit Xtreme Performance Heavy Duty Cushioned Ceramic 900Kg (20%) 630Nm

Xtreme Performance - Cushioned Ceramic kit /-1CRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 630Nm
• Clamp load 900Kg 20% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMI23010-1C

Weight: 7.76

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.4
Torque (Nm): 630
Flywheel Step: -15.5mm/.610""
Design: Single Plate
Stage: Stage 2
Clamp Load: 900Kg (20% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Mitsubishi/Galant/Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A)/1987.11-1992.10/4G63 (DOHC 16V) 1997 Petrol 106 kW 144 BHP (1987.11 - 1992.10)
Mitsubishi/Galant/Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A)/1988.11-1992.10/4G63 (DOHC 16V) 1997 Petrol 107 kW 146 BHP (1988.11 - 1992.10)
Mitsubishi/Eclipse/Gen II | 2000 GS 16V (D32A)/1995.12-1999.04/4G63 (DOHC 16V) 1997 Petrol 107 kW 146 BHP (1995.12 - 1999.04)
Mitsubishi/Lancer/2.0/2003.09-2007.12/4G63 (DOHC 16V) 1997 Petrol 99 kW 135 BHP (2003.09 - 2007.12)
Mitsubishi/Lancer/2.0 (CS9A)/2003.12-2013.12/4G63 (DOHC 16V) 1997 Petrol 99 kW 135 BHP (2003.12 - 2013.12)
Mitsubishi/Space Runner/2.0 (N63W)/1999.08-2002.08/4G63 (SOHC 16V) 1997 Petrol 100 kW 136 BHP (1999.08 - 2002.08)
Mitsubishi/Space Wagon/2.0/1998.10-2004.12/4G63 (SOHC 16V) 1997 Petrol 98 kW 133 BHP (1998.10 - 2004.12)
Mitsubishi/Space Runner/2.0/2000.05-2002.08/4G63 (SOHC 16V) 1997 Petrol 98 kW 133 BHP (2000.05 - 2002.08)
Mitsubishi/Galant/Gen. VIII | 2.0 (EA2A)/2000.09-2004.10/4G63 (SOHC 16V) 1997 Petrol 98 kW 133 BHP (2000.09 - 2004.10)
Mitsubishi/Galant/Gen. VI | 2.0 (E39A. E38A. E33A)/1989.04-1992.10/4G63 (SOHC 8V) 1997 Petrol 80 kW 109 BHP (1989.04 - 1992.10)
Mitsubishi/Eclipse/Gen I | 2.0 Turbo/1989.12-1994.03/4G63-T (DOHC 16V) 1997 Petrol 147 kW 200 BHP (1989.12 - 1994.03)
Mitsubishi/Eclipse/Gen II | 2.0 Turbo 4WD (D33A)/1995.12-1999.04/4G63-T (DOHC 16V) 1997 Petrol 157 kW 214 BHP (1995.12 - 1999.04)
Mitsubishi/Eclipse/Gen II | 2000 GT 16V/1995.12-1999.04/4G63-T (DOHC 16V) 1997 Petrol 157 kW 214 BHP (1995.12 - 1999.04)
Mitsubishi/Space Wagon/2.4 i (N34W)/1992.10-1998.10/4G64 (16V) 2351 Petrol 102 kW 139 BHP (1992.10 - 1998.10)
Mitsubishi/Space Wagon/2.4/1992.04-1995.05/4G64 (16V) 2351 Petrol 85 kW 116 BHP (1992.04 - 1995.05)
Mitsubishi/Space Wagon/2.4/1991.10-1997.10/4G64 (16V) 2351 Petrol 88 kW 120 BHP (1991.10 - 1997.10)
Mitsubishi/Space Wagon/2.4/1998.11-2004.04/4G64 (16V) 2351 Petrol 96 kW 131 BHP (1998.11 - 2004.04)
Mitsubishi/Lancer/1.8 16V/1995.09-2003.08/4G93T 1834 Petrol 151 kW 205 BHP (1995.09 - 2003.08)
Mitsubishi/Galant/Gen. VIII | 2.5 Type S/1999.10-2004.10/6A13 2498 Petrol 151 kW 205 BHP (1999.10 - 2004.10)
Mitsubishi/Sigma/3.0 V6/1990.12-1996.07/6G72 (DOHC 24V) 2972 Petrol 151 kW 205 BHP (1990.12 - 1996.07)
Mitsubishi/GTO/3.0 AWD/1996.05-2000.08/6G72 (DOHC 24V) 2972 Petrol 163 kW 222 BHP (1996.05 - 2000.08)
Mitsubishi/Magna/3.0i (TR)/1991.03-1994.02/6G72 (SOHC 12V) 2972 Petrol 120 kW 163 BHP (1991.03 - 1994.02)
Mitsubishi/Magna/3.0i (TR)/1991.04-1994.02/6G72 (SOHC 12V) 2972 Petrol 120 kW 163 BHP (1991.04 - 1994.02)
Mitsubishi/Magna/3.0i (TS)/1994.02-1996.04/6G72 (SOHC 12V) 2972 Petrol 120 kW 163 BHP (1994.02 - 1996.04)
Mitsubishi/Sigma/3.0/1992.06-1996.10/6G72 (SOHC 12V) 2972 Petrol 125 kW 170 BHP (1992.06 - 1996.10)
Mitsubishi/Sigma/3.0 V6/1990.12-1996.07/6G72 (SOHC 12V) 2972 Petrol 130 kW 177 BHP (1990.12 - 1996.07)
Mitsubishi/Galant/Gen. VII | 2.5 V6-24 4WD (E88A)/1992.11-1996.08/6G73 2497 Petrol 125 kW 170 BHP (1992.11 - 1996.08)
Mitsubishi/Galant/Gen. VII | 2.5 (E88A)/1992.11-1996.09/6G73 2497 Petrol 125 kW 170 BHP (1992.11 - 1996.09) ,
