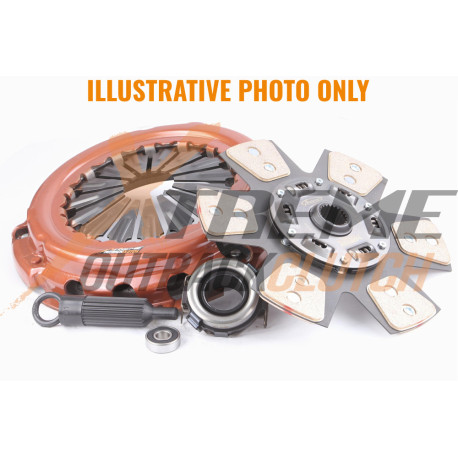

KMI23004-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic 410Nm 600KG (30%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 410Nm
• Clamp load 600Kg 30% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMI23004-1B

Weight: 7.62

Note:

Torque (Nm): 410
Clamp Load: 600KG (30% inc.)
Flywheel Step: Flat
Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26,3
Recommended for: High Speed 4x4 Trial or Desert Race - Stage 2
Design: Single Plate
Diameter [mm]: 225
Stage: Stage 2

Suitable for:

- Mitsubishi/L300/2.5 D (L039P)/1986.11-1994.04/4D56 (8V) 2477 Diesel 51 kW 69 BHP (1986.11 - 1994.04)
Mitsubishi/L200/2.5 D (K14T)/1986.10-1996.10/4D56 (8V) 2477 Diesel 55 kW 75 BHP (1986.10 - 1996.10)
Mitsubishi/L200/2.5 D 4WD (K24T)/1986.12-1996.10/4D56 (8V) 2477 Diesel 55 kW 75 BHP (1986.12 - 1996.10)
Mitsubishi/L200/2.5 TD 4WD/1990.06-1995.05/4D56-T 2477 Diesel 62 kW 84 BHP (1990.06 - 1995.05)
Mitsubishi/L200/2.5 TD (K14T)/1990.09-1996.10/4D56-T 2477 Diesel 62 kW 84 BHP (1990.09 - 1996.10)
Mitsubishi/L200/2.5 4WD/1992.08-1996.10/4D56-T 2477 Diesel 62 kW 84 BHP (1992.08 - 1996.10)
Mitsubishi/Pajero/Gen. I | 2.6 (L042G. L047G)/1983.01-1990.11/4G54 2555 Petrol 76 kW 103 BHP (1983.01 - 1990.11)
Mitsubishi/Pajero/Gen. II | 2.6 4WD/1991.03-1997.10/4G54 2555 Petrol 76 kW 103 BHP (1991.03 - 1997.10)
Mitsubishi/L200/2.6 4WD/1986.01-1995.05/4G54 2555 Petrol 79 kW 107 BHP (1986.01 - 1995.05)
Mitsubishi/Pajero/Gen. I | 2.6 4WD (L042G. L047G)/1986.10-1991.05/4G54 2555 Petrol 79 kW 107 BHP (1986.10 - 1991.05)
Mitsubishi/L200/2.6 (K33T)/1986.10-1996.10/4G54 2555 Petrol 79 kW 107 BHP (1986.10 - 1996.10)
Mitsubishi/Pajero/Gen. II | 2.6 4WD/1991.05-1993.10/4G54 2555 Petrol 79 kW 107 BHP (1991.05 - 1993.10)
Mitsubishi/L200/2.6/1986.11-1996.10/4G54 2555 Petrol 84 kW 114 BHP (1986.11 - 1996.10)
Mitsubishi/L200/2.6 4WD (K33T)/1986.11-1996.10/4G54 2555 Petrol 84 kW 114 BHP (1986.11 - 1996.10)
Mitsubishi/L200/2.6 4WD (K33T)/1990.09-1996.10/4G54 2555 Petrol 84 kW 114 BHP (1990.09 - 1996.10)
Mitsubishi/L200/2.0 (K62T)/1996.06-2007.12/4G63 (SOHC 16V) 1997 Petrol 90 kW 122 BHP (1996.06 - 2007.12)
Mitsubishi/Pajero/Gen. I | 3.0 V6 (L141G. L146G)/1988.11-1990.11/6G72 (SOHC 12V) 2972 Petrol 104 kW 141 BHP (1988.11 - 1990.11)
Mitsubishi/L200/2.6 4WD (K33T)/1989.11-1995.05/G54B 2555 Petrol 76 kW 103 BHP (1989.11 - 1995.05) ,
