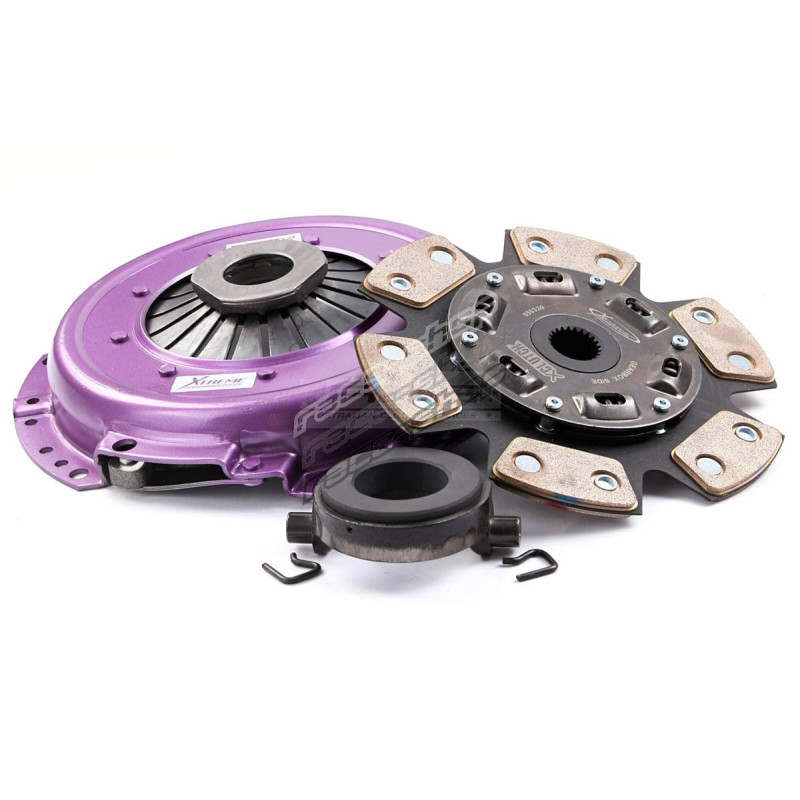

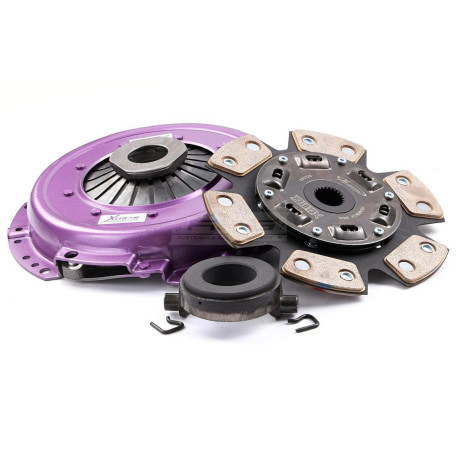

KMG22002-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 320Nm

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 320Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMG22002-1B

Weight: 6.81

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 25
Torque (Nm): 320
Flywheel Step:
Design: Single Plate
Stage: Stage 2
Clamp Load:
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- MG/MGB Cabriolet/1.8 (N3)/1962.05-1980.12/18G 1767 Petrol 70 kW 95 BHP (1962.05 - 1980.12)
MG/MGB GT/1.8 (D3)/1965.07-1980.11/18G 1798 Petrol 68 kW 92 BHP (1965.07 - 1980.11)
MG/MGB Cabriolet/1.8/1962.06-1980.01/18G, 18GB, 18GA, 18GD, 18GG 1798 Petrol 71 kW 97 BHP (1962.06 - 1980.01)
MG/MGB GT/1.8 (D3. GHD5L)/1965.07-1980.11/18G, 18GB, 18GD, 18GG 1798 Petrol 70 kW 95 BHP (1965.07 - 1980.11)
MG/MGB GT/1.8/1975.06-1980.01/18GB 1798 Petrol 71 kW 97 BHP (1975.06 - 1980.01) ,
