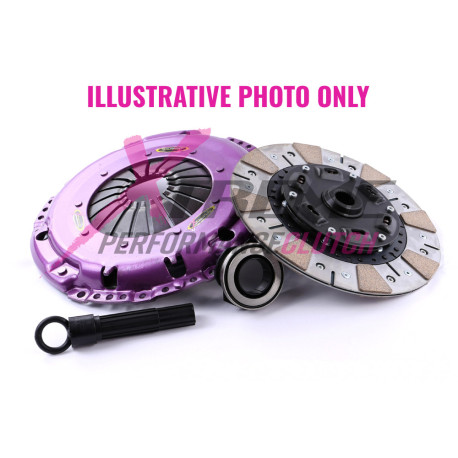

KGM23003-1C Clutch Kit Xtreme Performance Heavy Duty Cushioned Ceramic 650Kg (30%) 470Nm

Xtreme Performance - Cushioned Ceramic kit /-1CRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 470Nm
• Clamp load 650Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM23003-1C

Weight: 7.17

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 470
Flywheel Step: -20.0mm/.787""
Design: Single Plate
Stage: Stage 2
Clamp Load: 650Kg (30% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Isuzu/Campo/2.5 D (KB27)/1983.01-1990.12/4JA1 2499 Diesel 55 kW 75 BHP (1983.01 - 1990.12)
Isuzu/Campo/2.5 D 4WD (KBD47)/1983.01-1990.12/4JA1 2499 Diesel 55 kW 75 BHP (1983.01 - 1990.12)
Holden/H Series/2.5 D (TFR54)/1988.02-1992.12/4JA1 2499 Diesel 57 kW 78 BHP (1988.02 - 1992.12)
Holden/H Series/2.5 D 4x4 (TFS54)/1988.02-1992.12/4JA1 2499 Diesel 57 kW 78 BHP (1988.02 - 1992.12)
Holden/H Series/2.0 Turbo/1985.04-1987.12/4ZC1-T 1994 Petrol 110 kW 150 BHP (1985.04 - 1987.12) ,
