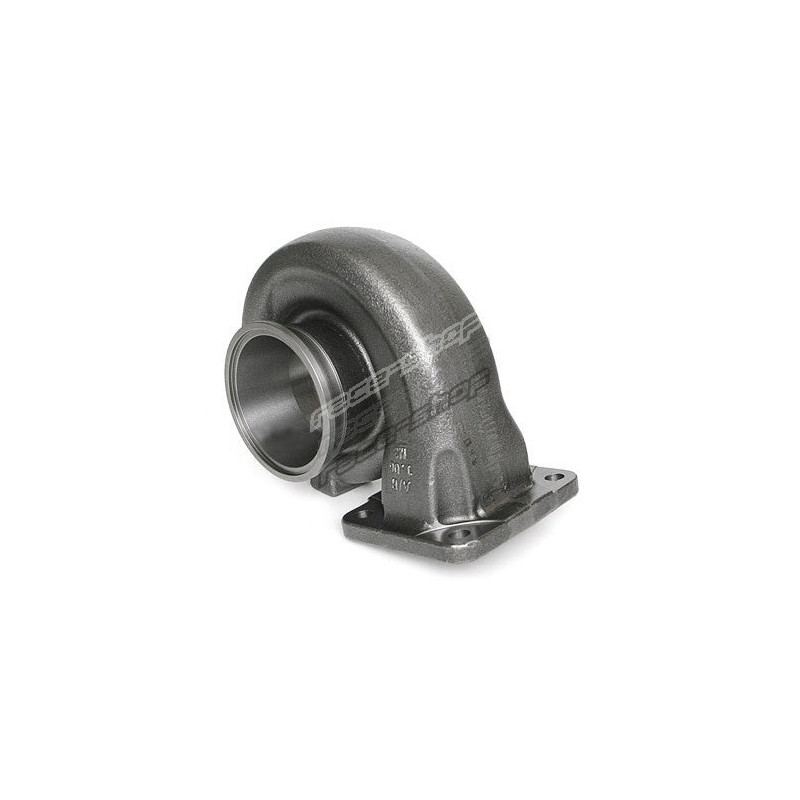

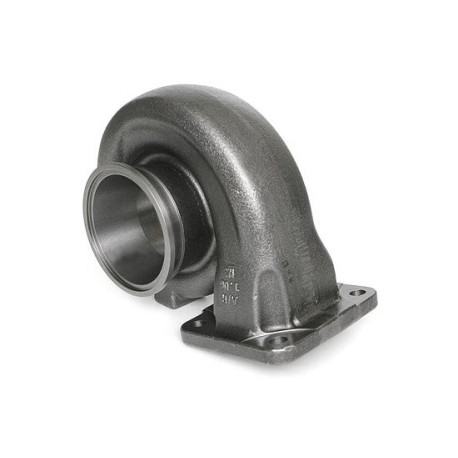

Garrett 740902-0016 Turbine Housing GT35/GTX35, 1.06 A/R, T4

Garrett turbine housing for GT35/GTX35-frame turbochargers, 1.06 A/R with T4 inlet flange, Ni-Resist material.

Garrett Undivided V-band inlet & outlet turbine housing in Ni-Resist material; for GT35 and GTX35 series turbochargers. The turbine housing is 1.06 A/R and 3-inch Garrett GT V-Band outlet, T4 Undivided inlet.

The turbine housing includes a turbine inlet clamp and turbine outlet clamp.

Specifications

• Frame: GT35/GTX35
• Material: Ni-Resist
• A/R: 1.06
• Inlet flange: T4
• Outlet flange: V-Band
• Rotation: standard
• Wastegate: external / free-float
• Scroll: single

Fits & compatible parts

• Compatible turbochargers: GTX35
• Related & compatible part numbers: 740902-0017, 740902-0018
