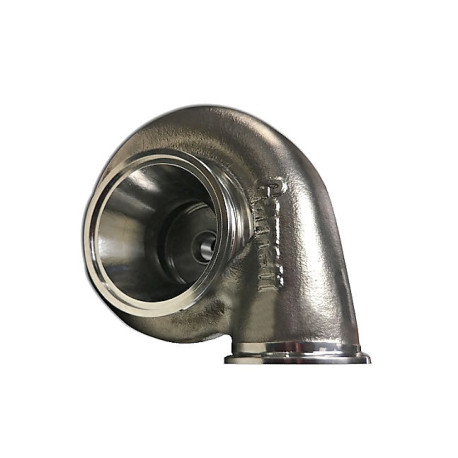

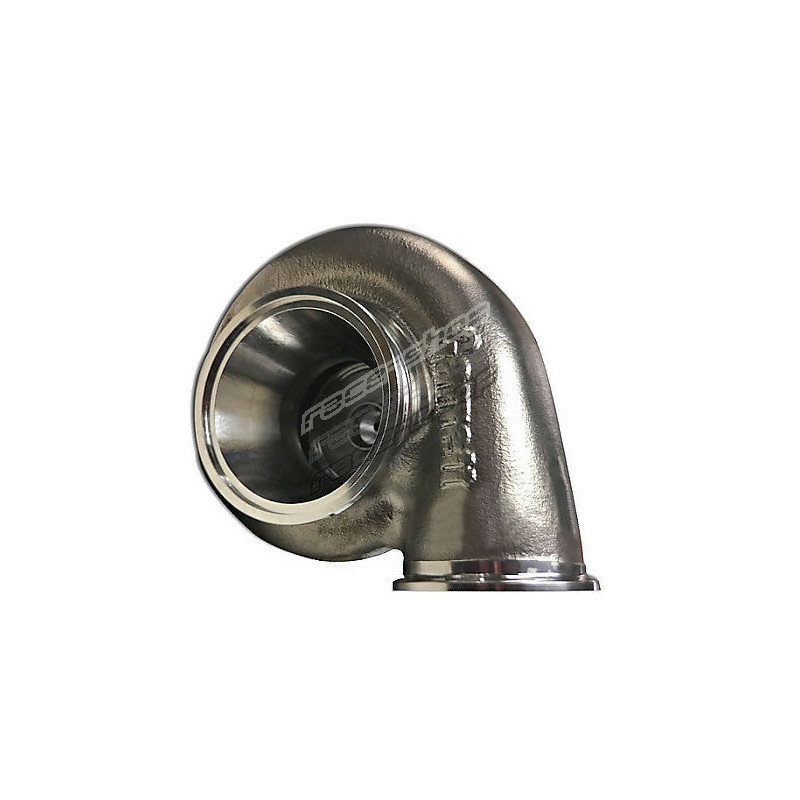

Garrett 757707-0012 Turbine Housing G42, 1.15 A/R, V-Band

Garrett turbine housing for G42-frame turbochargers, 1.15 A/R with V-Band inlet flange, Stainless steel material.

Specifications

• Frame: G42
• Material: Stainless steel
• A/R: 1.15
• Inlet flange: V-Band
• Outlet flange: V-Band
• Rotation: standard
• Wastegate: external / free-float
• Scroll: twin-scroll / divided
• Configuration: open volute

Fits & compatible parts

• Compatible turbochargers: GTX30

Features

• G42 Turbine Housings
• G42 turbine housings are made from stainless steel to provide ultimate durability and
• temperature capability up 950 deg C degrees / 1742 deg F
• GTX and GT housings not interchangeable
• Turbine housings are available in V-band, open, free float configurations for launch
• V-band inlet is 3.6 inch / 92mm ( compared to GTX30/35 3 inch / 76mm
• V-band outlet is 4.3 inch / 109mm
