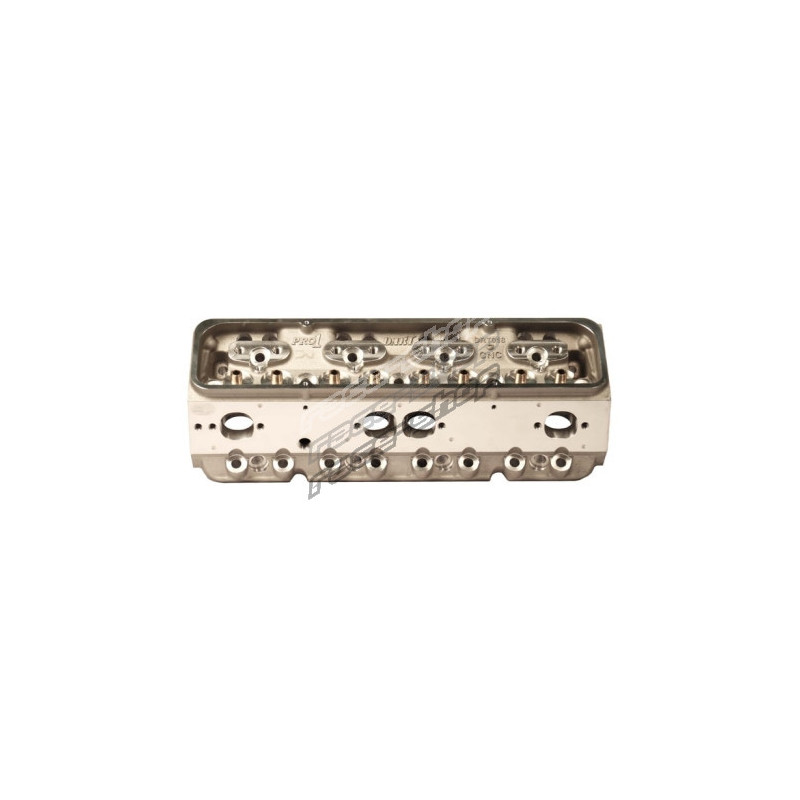

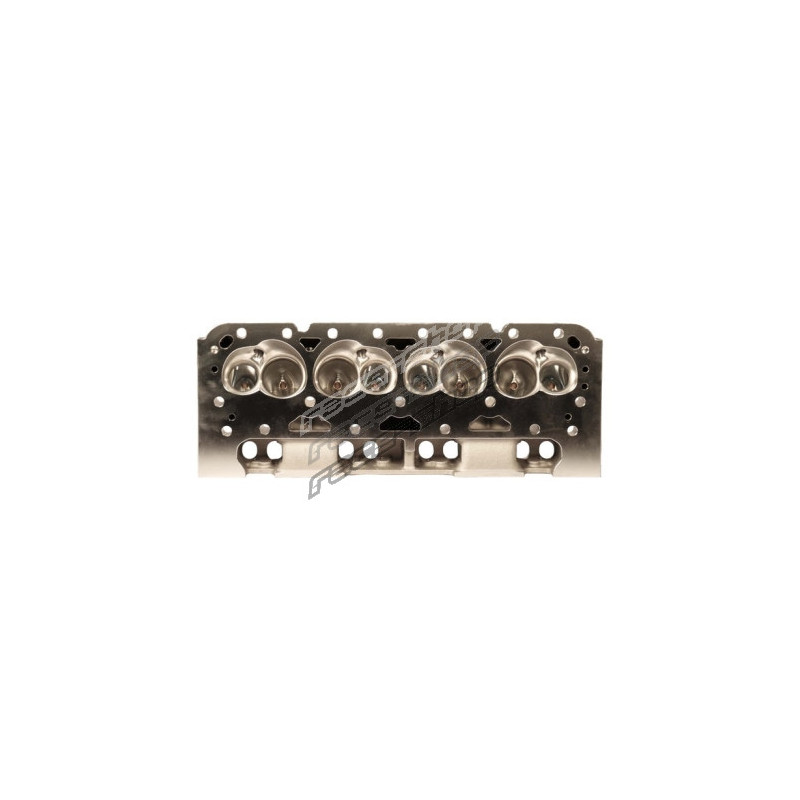

DART 19900172 Pro1 Chevrolet Big Block Head – 275.00 CC Port, 110.00 CC Chamber

For street performance, mild bracket racing and marine. Under 6,800 RPM, under 500 cubic inches. Excellent mid-range torque and power, good for heavier vehicles. A new high velocity oval port design makes this head an ideal choice for street cars and trucks. The PRO1’s race proven features include rolled valve angles, improved spark plug location, extra long intake valves, raised exhaust ports, and fast burn chambers. Long wearing Bronze valve guides, screw-in studs, multi-angle intake seats with hardened, radiused exhaust seats are standard. Best of all, our precision cast ports produce outstanding airflow without time consuming porting. Assemblies include Stainless Steel valves, premium springs, locks, retainers, guide plates and seals.
110cc chamber heads available upon request; Heads are sold individuall

• Industry: Automotive
• CNC Ported: Yes
• Combustion Chamber Volume: 110.00 CC
• Port Volume: 275.00 CC
• Valve Angle: 24 DD
• Valve Spring Diameter: 1.550 IN
• Engine Type: ICE
• Valve Spring Type: Double
• Product Type: Engine Cylinder Head
• Engine - Web: Big Block
• Emissions Code: 3
