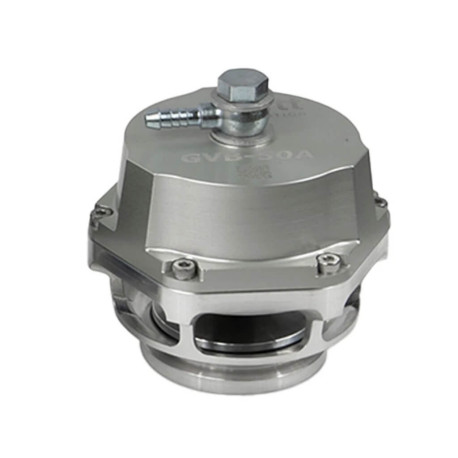

Garrett 914956-0004 Blow-Off Valve GVB-50A 50 mm, Silver

Garrett GVB-50A vent-to-atmosphere blow-off valve — relieves compressor surge on lift-off for smoother, more reliable boost control.

Garrett Vent / Blow-Off Valves are created by the engineers that designed G-Series turbochargers and GVW Wastegates. GVB-50 is a high-flowing BOV with a 50mm valve, available in four striking color combinations. Select between vent to atmosphere (VTA) and recirculating (RCV) housing options.

Every kit contains- all fasteners, springs, fittings, V-bands, clamps, and flanges.

Specifications

• Type: vent to atmosphere
• Valve size: 50 mm
• Base pressure: 0.7 Bar (10 PSI)
• Spring range: 3–13 PSI
• Max flow: 350 CFM
• Colour: Silver

Features

• CFD tested for maximum flow and thermal efficiency
• Replaceable components to increase service life
• Robust design for easy diaphragm replacement
• 6061 Anodized aluminum actuator cover and fully-machined billet housing
• Maximum flow 350 CFM / .21kg/s for GVB-50R
• Four outlet adapters for the recirculating valve. Adapters sold separately
• Base pressure 0.7 Bar / 10 PSI (blue and white spring installed)
• Configurable springs settings include: 3 / 4 / 6 / 7 / 9 / 10 / 12 / 13 PSI
