Garrett 934074-5002S CHRA G-Series II G25-700, Trim 65

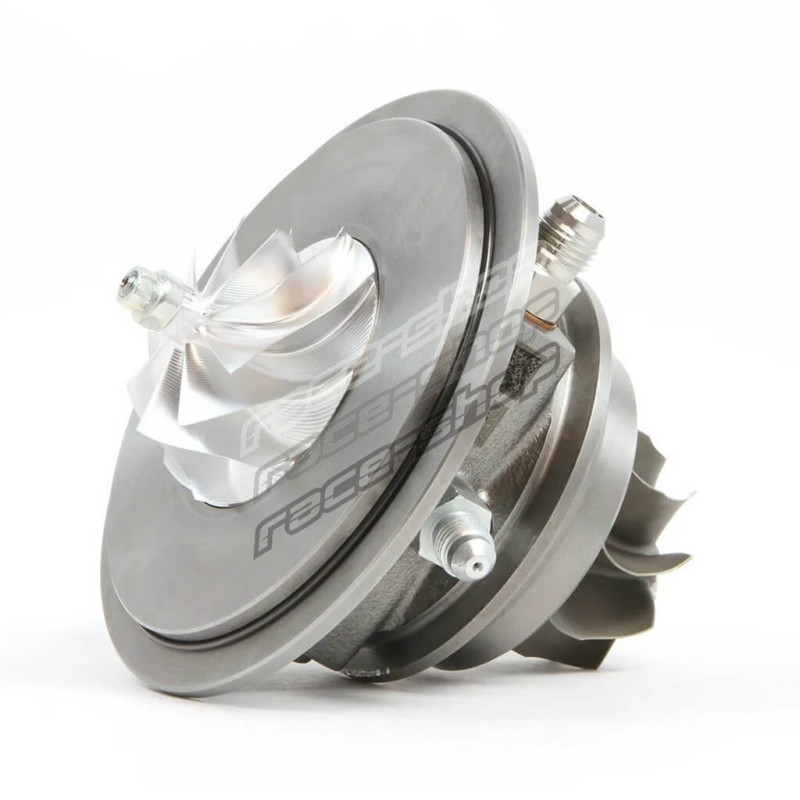

Replacement centre cartridge (CHRA) for the Garrett G25-700 turbocharger — the balanced rotating group carrying the shaft, compressor wheel and turbine wheel.

Now you can harness the power of motorsport legends and experience the durability of champions in your car with the new G-Series II universal Performance Turbos line from Garrett.

Maximum Allowable Turbocharger Speed Is 165 KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure.

Specifications

• Frame: G25
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim, 0.7 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 165 krpm
• Power: up to 700 HP
• Displacement: 1.4-3.0 L

Features

• G-Series II G25-700 standard rotation CHRA
• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• 54mm Compressor Inducer / 67mm exducer
• Increased efficiency at high flow rates
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
• Stainless steel turbine housings are rated up to 1050C degree (sold separately)
