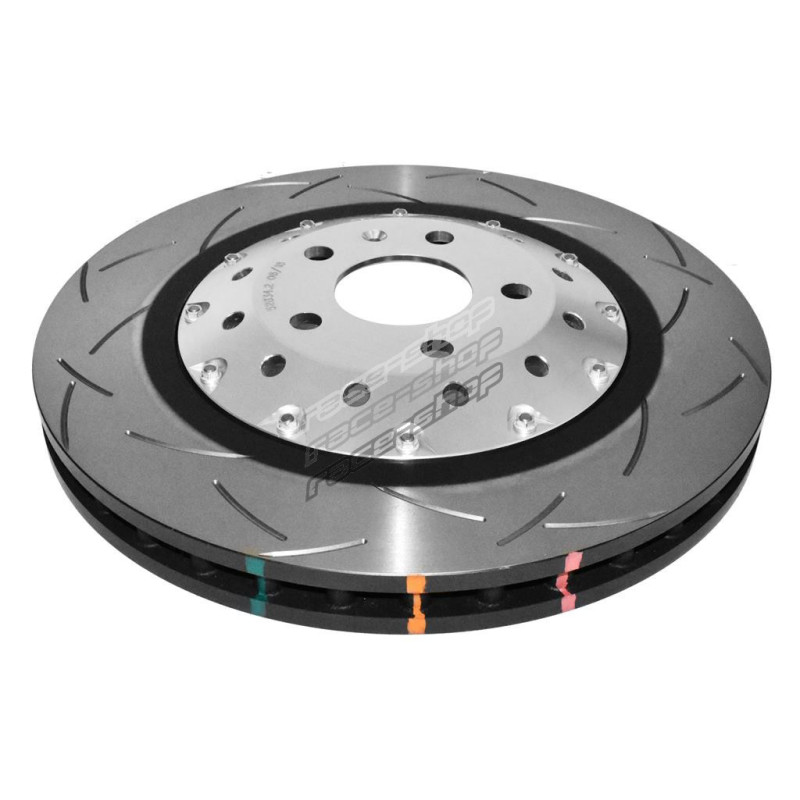

DBA 5000 series T3 Slotted Silver Hat DBA52834SLVS (2 pcs)

T3 Slot – 48 Precision CNC-Machined Slots

Feature: Tri-symmetrical curved slots dampen vibration harmonics and noise

Advantage: Provides a quieter, more responsive, and smoother brake pedal feel

Feature: Increased number of out-gassing exit points for brake pad friction gases

Advantage: Enhances consistency and effectiveness of every brake stop

Feature: Universal slot design

Advantage: Eliminates the need for left and right disc variants

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area for improved heat dissipation

Advantage: Minimizes brake fade and increases braking effectiveness

Benefit: Prolongs service life for both pads and rotors, reducing mechanical damage and associated costs

XG150 High Carbon Alloyed Iron

Feature: Increased thermal capacity allows the rotor to endure constant extremes of heat

Advantage: Minimizes warping and cracking

Benefit: Extends the service life of the rotor

Thermal Stability Profiling (TSP)

Feature: Special formulation designed to respond to DBA’s TSP process

Advantage: Increases heat tolerance and material stability

Benefit: Minimizes warping and cracking, prolonging rotor lifespan

Thermographic Temperature Monitoring (TTM)

Feature: Heat paint markings change color at specific temperature thresholds

Advantage: Provides a clear visual indication of peak braking temperatures

Feature: Paint markings permanently change color once thresholds are exceeded

Benefit: Helps monitor rotor fatigue, plan replacements, and support warranty claims

Paint Protection on Non-Friction Areas

Feature: Protective coating on non-friction surfaces

Advantage: Reduces corrosion and prevents rust

Benefit: Enhances product appearance and adds long-term value

Technical information:

Diameter [mm]: 365
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 68
Minimum Thickness [mm]: 32
Thickness [mm]: 34
Height [mm]: 52.4
Pitch Circle [mm]: 112
Stage: Stage 5
Replacement Rotor: DBA52834.1S
ECE R90 number: E11*90R02/06*60518*00

Suitable for:

Front - AUDI/R8/4.2 420BHP (2007-2011) , Brake Caliper: Brembo Front - AUDI/R8/4.2 430BHP (2010-2015) , Brake Caliper: Brembo Front - AUDI/R8/5.2 532BHP (2009-2012) , Brake Caliper: Brembo Front - AUDI/R8/5.2 540BHP (2015-) , Brake Caliper: Brembo Front - AUDI/R8/5.2 540BHP RWS (2017-) , Brake Caliper: Brembo Front - AUDI/R8/5.2 550BHP (2012-2015) , Brake Caliper: Brembo Front - AUDI/R8/5.2 560BHP (2012-2015) , Brake Caliper: Brembo Front - AUDI/RS4 B8/4.2 450BHP (2012-2016) , Brake Caliper: Brembo Front - AUDI/RS5 B8/4.2 450BHP (2010-2016) , Brake Caliper: Brembo
