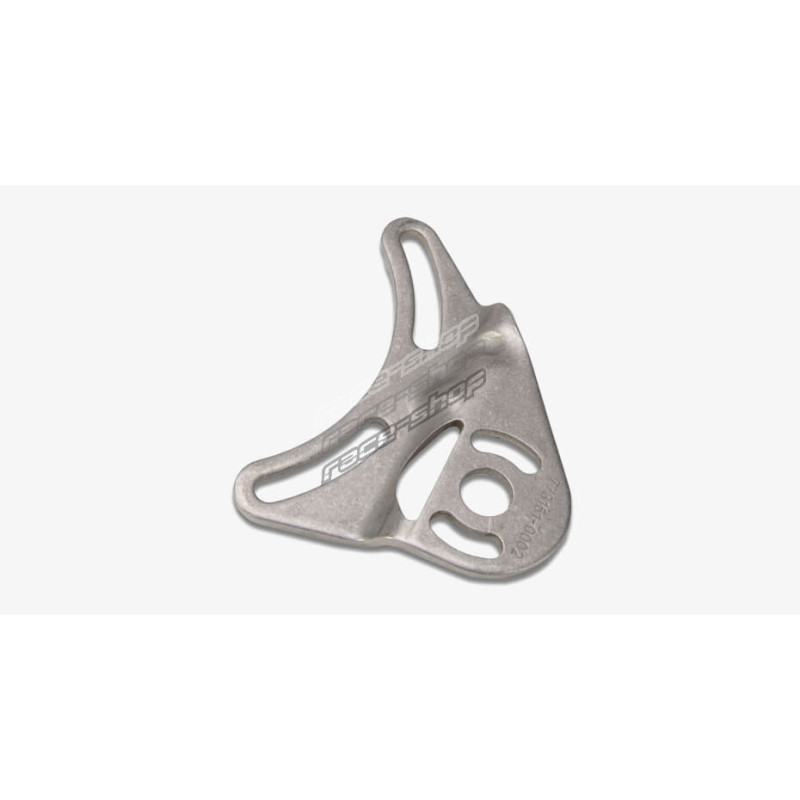

Garrett 773151-0002 Actuator Bracket

Garrett actuator bracket.

The Garrett Adjustable Wastegate Bracket allows for a significantly greater range of motion to set up the compressor outlet and wastegate can.

This provides easier fitment in tight engine bays by giving you the ability to make smaller adjustments to compressor housing clocking than would be possible through the standard bolt adjustments which adjust the compressor outlet at 60* increments on GT25R and GT28R turbochargers.

The bracket also allows for redirection of the actuator to keep vacuum lines away from heat or sharp edges.

The adjustable actuator bracket is available for use on GT25R, GT28R, and GT30R turbochargers.

Fits & compatible parts

• Compatible turbochargers: GT25R, GT28R, GT30R
