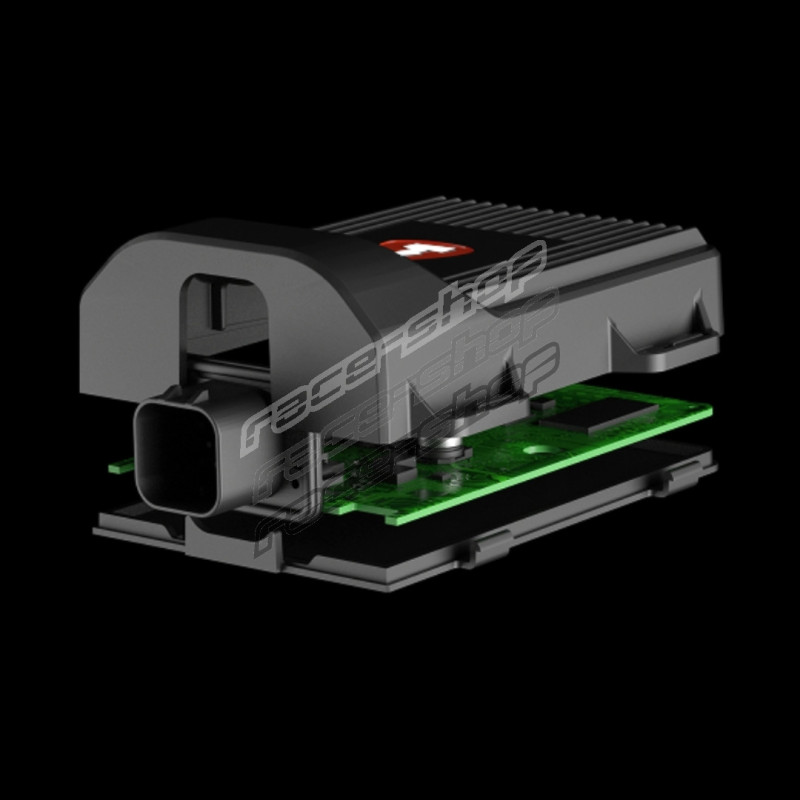

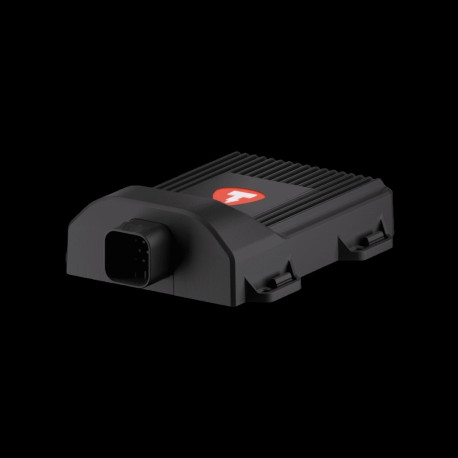

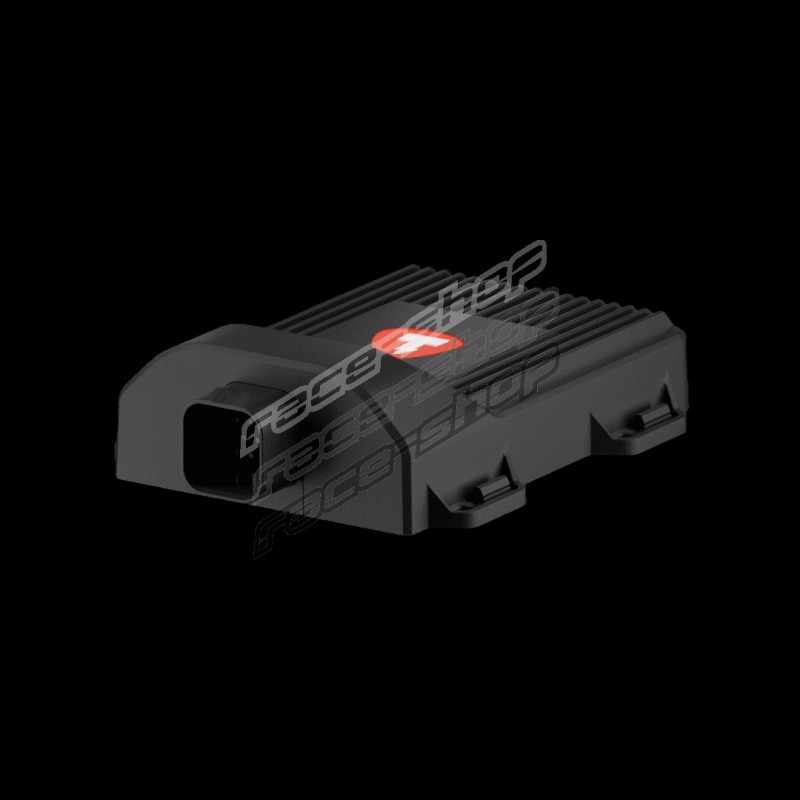

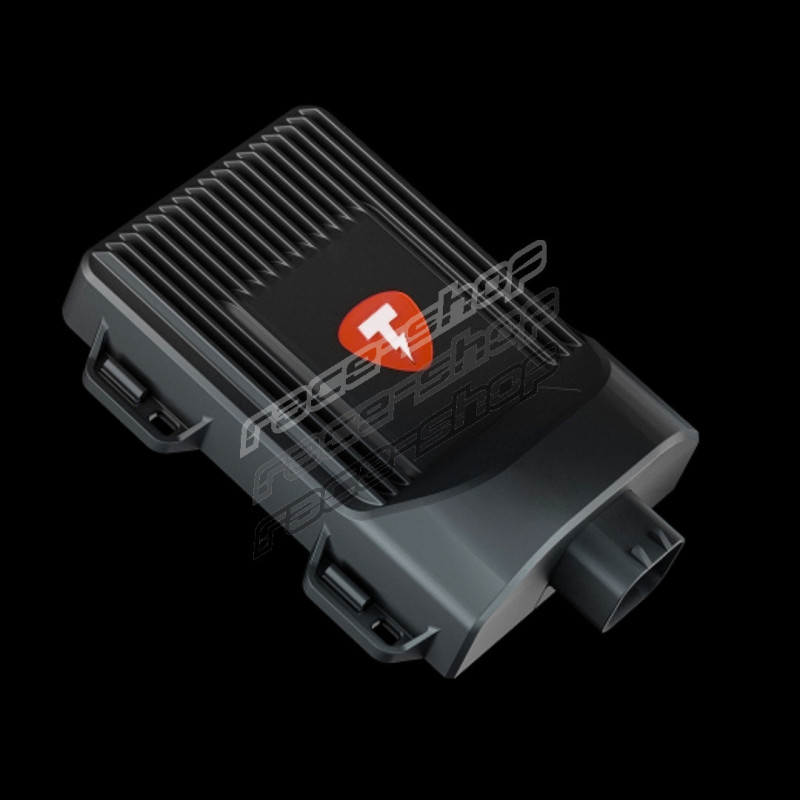

THOR electronic exhaust system additional component - ECU (Pro)

THOR PRO ECU is a smart unit with a new processor that allows you to reproduce the sounds of supercar exhausts in the most realistic and distortion-free way. The control unit is connected to the cloud service: system updates and new sound presets are downloaded over the air. The updated Bluetooth chip allows you to connect to the system within a radius of 30 meters.

THOR Electronic exhaust system grants an unique sound to the vehicle!

Thor PRO Control unit specification:

• Communication range via the BLE interface
• Sound amplifier power: up to 85W
• Current consumption: 5 A
• Amplifier efficiency: more than 90%
• Device power supply: from 10 to 30 V
• Supported CAN exchange rates (kBit/s): 125, 250, 500, 1000.
• Supported smartphone OS versions: iOS at least 10; Android at least 5.

Control and profile settings:

• Sound system controlled via mobile APP (available on App Store or Google Play)
• Choose between 20+ different exhaust sounds of legendary engines
• New sounds added and updated every month

Application:

• ANY vehicle 2005+ (with engine CAN bus)
• Also suitable for electric cars

Scope of delivery:

• THOR PRO ECU
• Instructions

Note:

• This product is NOT a full kit
• Installation INSTRUCTIONS can be found in the product attachments tab
