RACES touch switch panel VGA 1x15PIN 12 / 24V

Product Specifications:

• Input: 12/24V DC
• Output: 12v @ 10A / 24V @ 10A DC
• Panel Rating (Max Cumulative Amp): 40A
• Backlit LED touch screen (White 'OFF' / Blue 'ON')
• Silicone rubber buttons
• 45 assorted text labels
• Double-sided adhesive for quick and easy mounting
• Basic wiring for simple DIY installation
• Ultrasonically welded enclosed control box
• Reverse Polarity Protection
• Over-voltage Protection
• Over-current Protection
• Built-in Resettable Fuse (PPTC)
• Install in a dry area/environment

Dimensions:

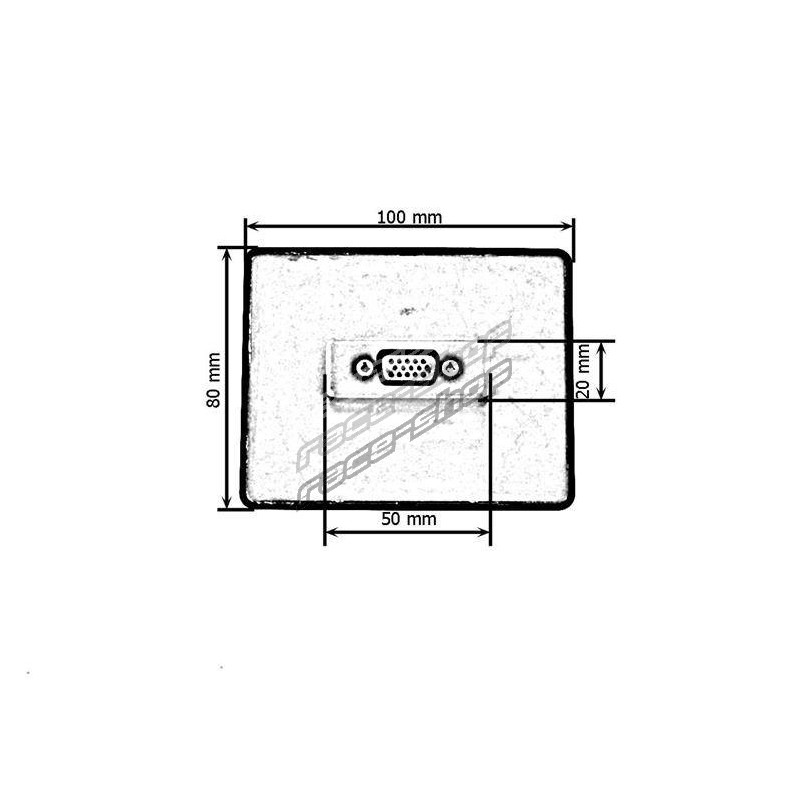

• Panel Size: 100mm (L) x 80mm (W) x 10mm (D)

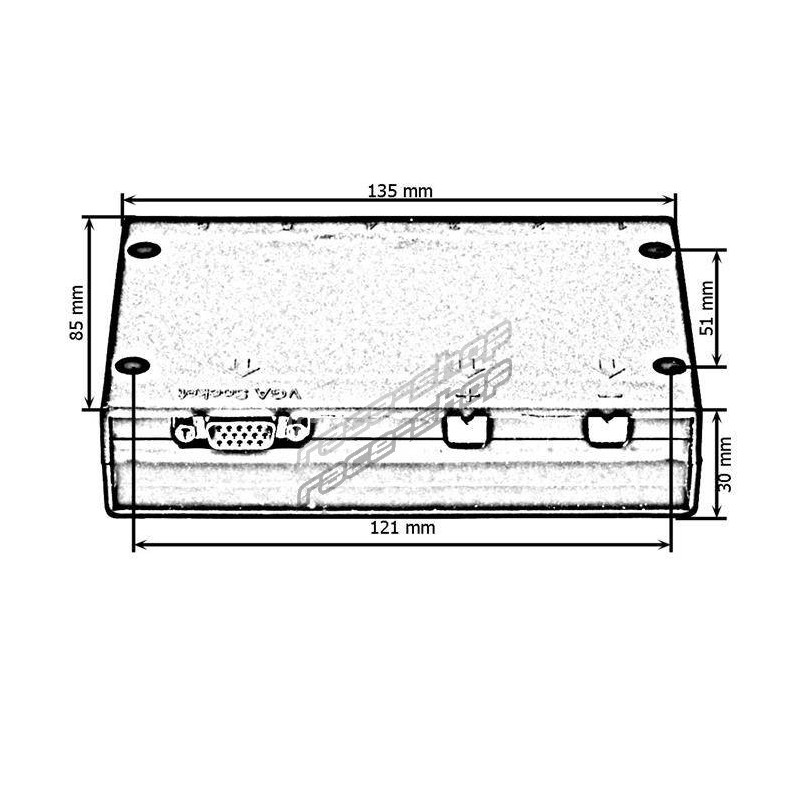

• Control Box Size: 135mm (L) x 85mm (W) x 30mm (D)
• Cut Out Size: 50mm (L) x 20mm (W) x 17mm (D)

Components In Box:

• 1 x Touch Screen Panel
• 1 x Circuit Control Box
• 1 x 15-pin VGA transmission cable
• 1 x 3M Double Side Adhesive
• 45x Text Indication Labels
• 2 x Power Input cable
• Power Output cables
• 2 x Stainless Steel Screws & Washers (M4x12mm)
• 4 x Stainless Steel Screws (M4x45mm)

Note: These panels are not waterproof and should be installed in a dry environment.
