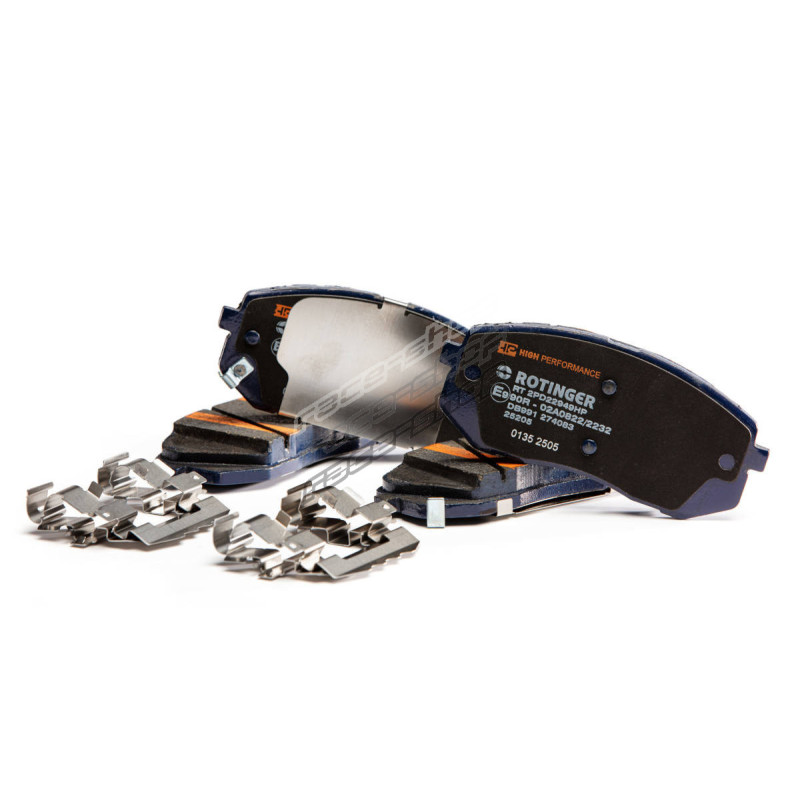

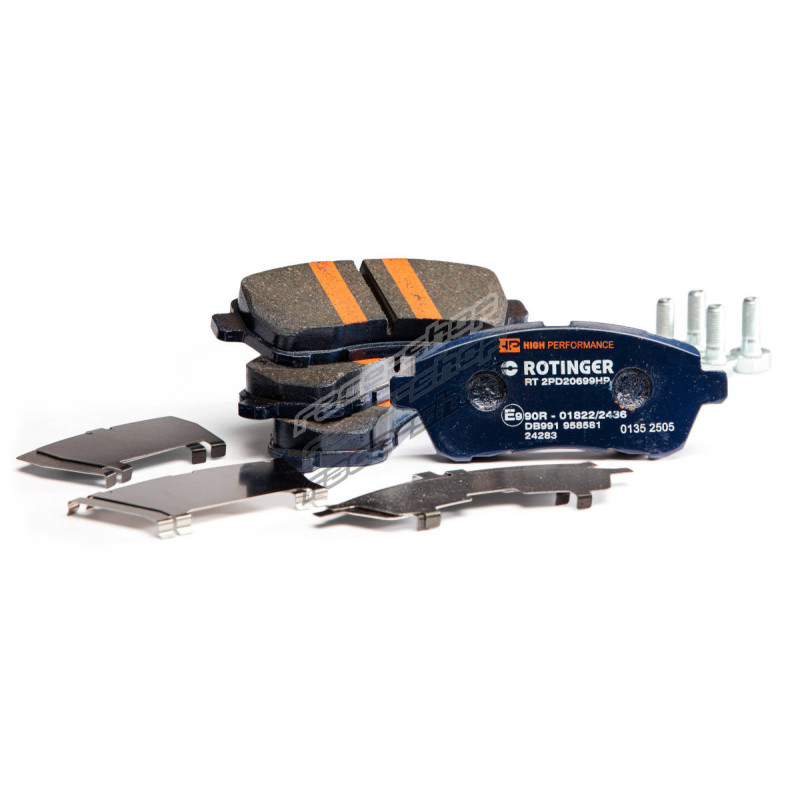

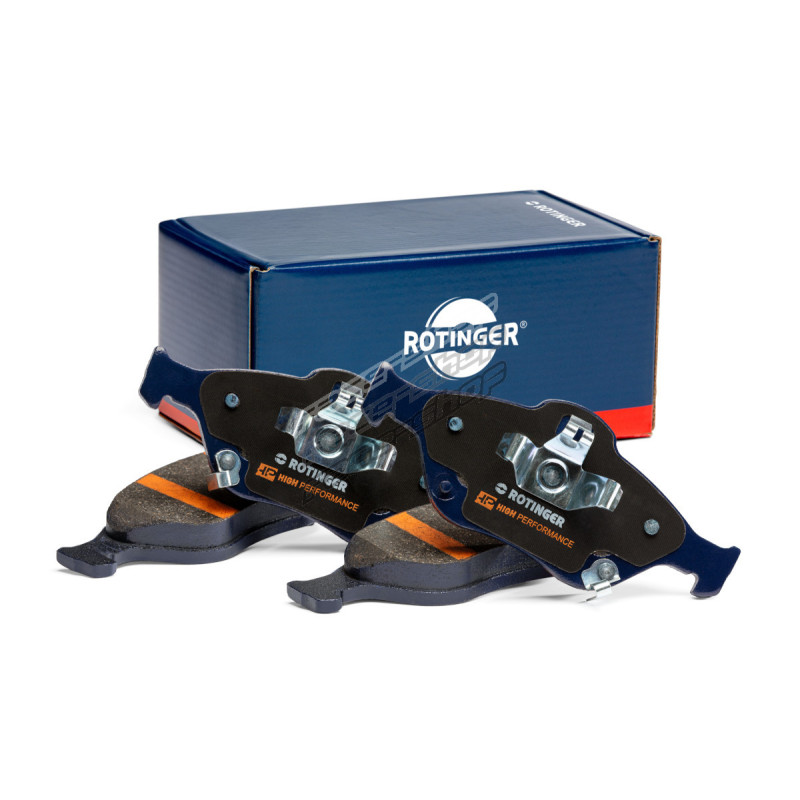

Front performance brake pads Rotinger HP, 2PD16539HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.
• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 57,20mm
• Height 2: -mm
• Width: 137,10mm
• Width 2: -mm
• Thickness: 18,20mm
• Thickness 2: -mm
• Weight: 1,60kg

Technical information:

This package contains 1 set of brake pads for front axle.

• Axle: Front
• Brake system: Bosch
• WVA Number: 23600

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB1464; GDB1591; GDB1624; GDB1669; GDB1676
Delphi: LP1653
Textar: 23600 190 1 4 T4047; 2360001; 23708 182 1 4; 2370803; 2509401
OEM: 16 111 407 80; 16 111 409 80; 16 118 388 80; 1617256680; 1636413880; 1647862380; 1647873980; 4252 22; 4252 35; 4252 50; 4252 52; 4252 53; 4253 31; 4253 39; 4253 70; 4253 85; 4254 27; 4254 71; 4254 92; 425418; 425489; E172125; E172284; E172315; E172559; 71770080; 71770965; 77364281; 77364897; 16 111 407 80; 16 111 409 80; 16 118 388 80; 16 478 623 80; 1617256680; 1647873980; 4252 22; 4252 35; 4252 50; 4252 52; 4252 53; 4253 31; 4253 39; 4253 85; 4254 18; 4254 27; 4254 71; 4254 89; 4254 92; E172125; E172284; E172315; E172559; 1014029390; 16 111 409 80; 4254 71; 16 111 409 80; 4254 71
