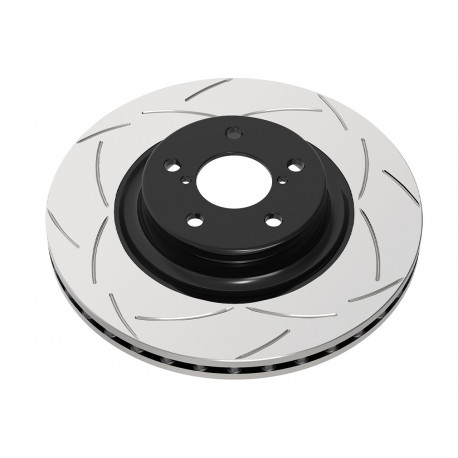

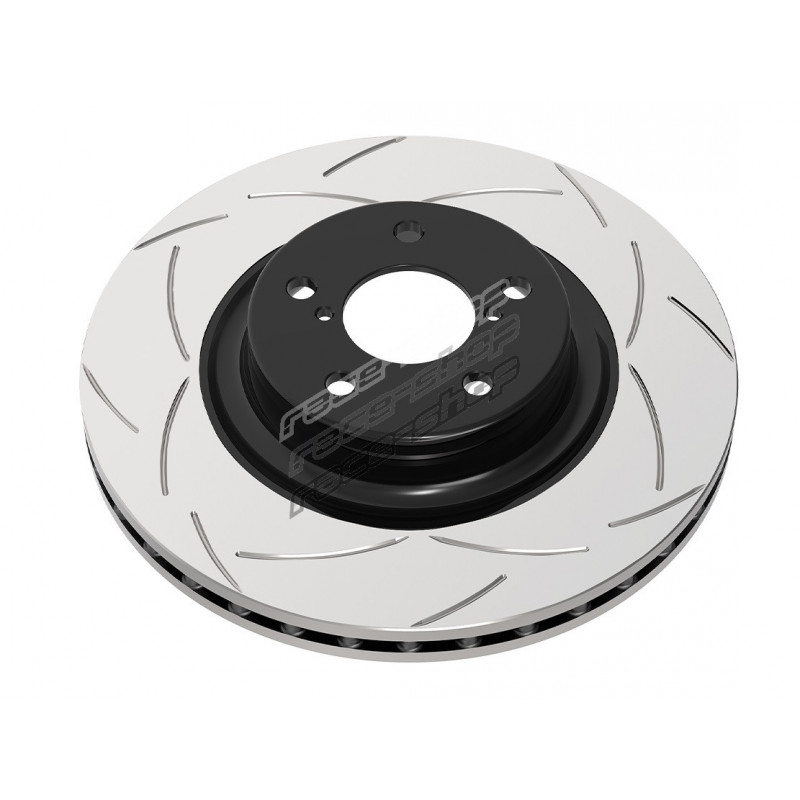

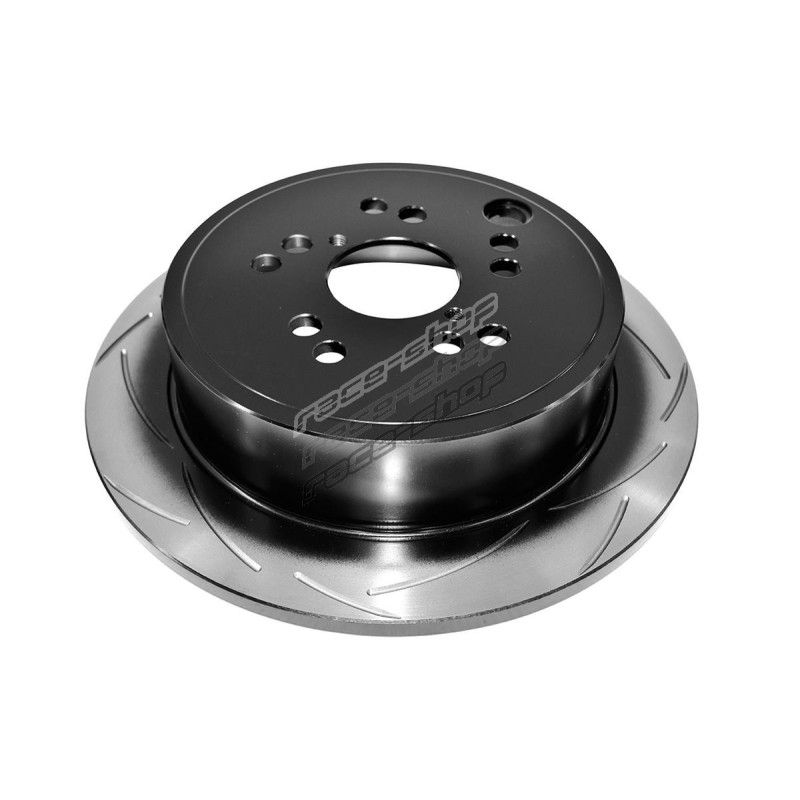

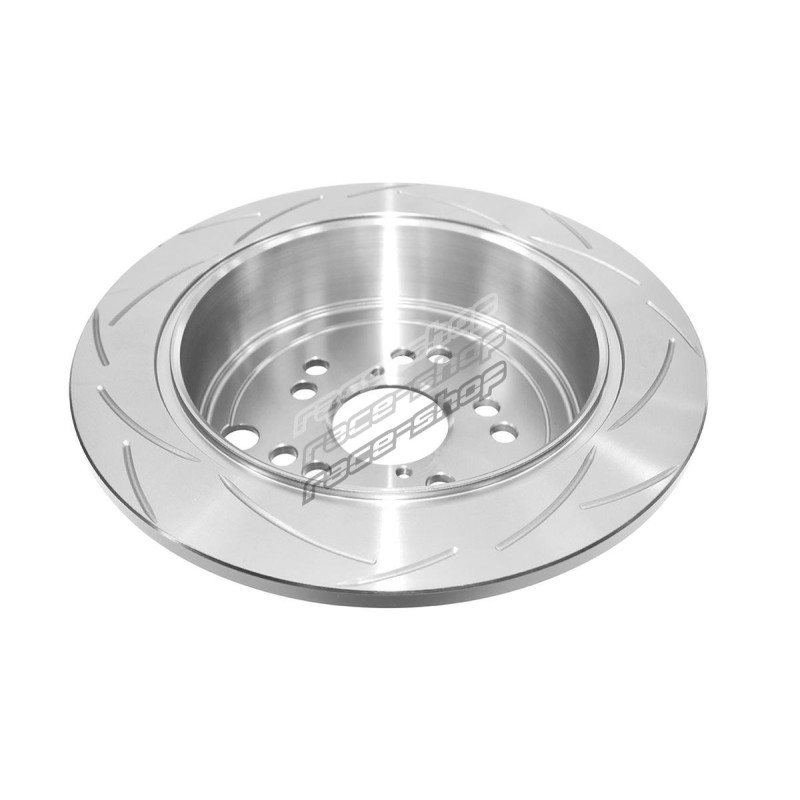

DBA T2 Rotors – Advanced Braking Technology

Key Features & Technologies

T3 Slot Design (48 CNC Precision-Machined Slots)

• Tri-symmetrical curved slots reduce vibration harmonics and noise
• Provides a quieter, smoother, and more responsive brake pedal feel
• Increased out-gassing points for friction gases to escape
• Improves braking consistency and performance under load
• Universal slot design eliminates the need for left/right specific discs

Kangaroo Paw Ventilation System

• 144 diamond and tear-drop shaped pillars for increased surface area
• Enhances heat dissipation to reduce brake fade and improve effectiveness
• Extends the life of both pads and rotors, reducing wear and maintenance costs

XG150 High Carbon Alloyed Iron

• Higher thermal capacity for managing extreme heat during braking
• Reduces the risk of warping and cracking
• Improves overall rotor durability and performance

Thermal Stability Profiling (TSP)

• Special formulation compatible with DBA’s TSP process
• Minimizes rotor stress and prolongs service life under high-heat conditions

Thermographic Temperature Monitoring (TTM)

• Color-changing heat paint indicates peak temperature thresholds
• Permanent color changes help monitor rotor fatigue
• Assists drivers in determining rotor replacement and helps with warranty claims

Paint Protection on Non-Friction Areas

• Reduces corrosion and prevents unsightly rust
• Enhances visual appearance and adds product value

Technical information:

Diameter [mm]: 286
Disc Vent: Solid
Number of Holes: 10
Inner Diameter [mm]: 58
Minimum Thickness [mm]: 8,5
Thickness [mm]: 10
Height [mm]: 63.5
Pitch Circle [mm]: 100 & 114.3
Stage: Stage 2

Suitable for:

Rear - SUBARU/BRZ/2.0 200BHP (2012-2022) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Forester/2.0 (2008-2013) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Forester/2.0 TD (2008-2013) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/1.5 105BHP (2006-2008) Brake Pads: DB1672, Rear - SUBARU/Impreza/1.5 R 105BHP (2007-2011) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/1.5 R 105BHP (2011-2012) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.0 R 160BHP (2007-2011) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.0 R 160BHP (2011-2012) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.0 TD (2009-2011) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.0 TD (2011-2012) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.5 Turbo WRX (2007-2008) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Impreza/2.5 Turbo WRX-S (2008-2012) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Legacy/2.0 (2010-2014) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Legacy/2.5 167BHP (2009-2014) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Legacy BRD/2.0 TD 150BHP (2009-2014) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Outback/2.0 TD 150BHP (2009-2014) Brake Pads: DB1803, Brake Caliper: Akebono Rear - SUBARU/Outback/2.5 165BHP (2009-2014) Brake Pads: DB1803, Brake Caliper: Akebono Rear - TOYOTA/GT86/2.0 200BHP (2012-2022) Brake Pads: DB1803, Brake Caliper: Akebono
