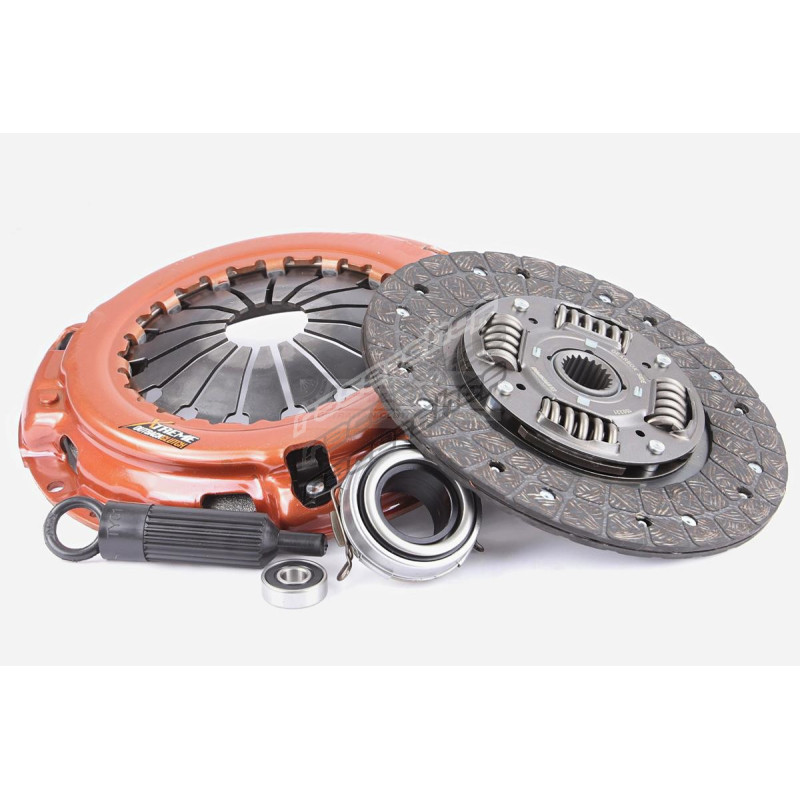

KTY24001-1A Clutch Kit Xtreme Outback Heavy Duty Organic 270Nm 700Kg (40%)

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:

• Torque capacity 270Nm
• Clamp load 700Kg 40% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY24001-1A

Weight: 8

Note:

Torque (Nm): 270
Clamp Load: 700KG (40% inc.)
Flywheel Step: +0.5mm
Clutch Disc Diameter (mm): 236
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29,8
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 236
Stage: Stage 1

Suitable for:

- Toyota/Land Cruiser 70/2.4 TD (LJ70_. LJ73_. LJ70RV)/1985.10-1990.05/2L-T 2446 Diesel 63 kW 86 BHP (1985.10 - 1990.05) 236mm Clutch, From 01/1990
Toyota/Land Cruiser 70/2.4 TD (LJ70)/1990.01-1993.05/2L-T 2446 Diesel 66 kW 90 BHP (1990.01 - 1993.05)
Toyota/Land Cruiser 70/2.4 TD (LJ70_)/1990.07-1996.05/2L-T 2446 Diesel 66 kW 90 BHP (1990.07 - 1996.05)
Toyota/Hilux/2.4 TD 4WD (LN165_. LN170_. LN190_)/1998.08-2002.01/2L-T 2446 Diesel 66 kW 90 BHP (1998.08 - 2002.01)
Toyota/Hilux/2.8 D 4WD (LN106. LN111)/1988.10-1997.12/3L 2779 Diesel 60 kW 82 BHP (1988.10 - 1997.12)
Toyota/Hilux/2.8 D 4WD (LN107. LN111. LN166. LN106)/1988.10-1997.12/3L 2779 Diesel 60 kW 82 BHP (1988.10 - 1997.12)
Toyota/4 Runner/Gen. II | 2.8 D (LN130)/1989.10-1996.03/3L 2779 Diesel 60 kW 82 BHP (1989.10 - 1996.03)
Toyota/Hiace/Gen. IV | 2.8 D 4WD (LH109)/1989.08-1998.07/3L 2779 Diesel 61 kW 83 BHP (1989.08 - 1998.07)
Toyota/Hiace/Gen. IV | 2.8 D (LH105. LH103. LH113)/1989.08-2000.08/3L 2779 Diesel 61 kW 83 BHP (1989.08 - 2000.08)
Toyota/Hiace/Gen. IV | 2.8 D (LH12_)/1989.08-2000.08/3L 2779 Diesel 61 kW 83 BHP (1989.08 - 2000.08)
Toyota/Dyna 150/2.8 D (LY211)/1995.05-1998.08/3L 2779 Diesel 61 kW 83 BHP (1995.05 - 1998.08)
Toyota/Hilux/3.0 D (LN17_. LN16_. LN147. LN152)/1997.11-2005.05/5L 2986 Diesel 65 kW 88 BHP (1997.11 - 2005.05)
Toyota/Hiace/Gen. IV | 3.0 D (LH17_. LH16_. LH172)/1998.08-2004.08/5L 2986 Diesel 65 kW 88 BHP (1998.08 - 2004.08)
Toyota/Hiace/Gen. IV | 3.0 D (LH174)/1998.08-2004.08/5L 2986 Diesel 65 kW 88 BHP (1998.08 - 2004.08)
Toyota/Dyna 150/3.0 D (LY102. LY112. LY122)/1998.09-2001.07/5L 2986 Diesel 65 kW 88 BHP (1998.09 - 2001.07)
Toyota/Dyna/3.0 D4d (LY220. LY230)/2001.08-2009/5L 2986 Diesel 65 kW 88 BHP (2001.08 - 2009)
Toyota/Hilux/3.0 D 4WD (LN172. LN167)/1997.08-2005.07/5L 2986 Diesel 67 kW 91 BHP (1997.08 - 2005.07)
Toyota/Hilux/3.0 D (LN147. LN192)/1998.01-2005.04/5L, 5L-E 2986 Diesel 71 kW 97 BHP (1998.01 - 2005.04)
Toyota/Hilux/3.0 D (LN14_)/1997.08-2000.09/5L-E 2986 Diesel 71 kW 97 BHP (1997.08 - 2000.09)
Toyota/Hilux/3.0 D 4WD (LN17_. LN16_)/1997.08-2005.08/5L-E 2986 Diesel 71 kW 97 BHP (1997.08 - 2005.08)
Toyota/Hilux/3.0 D 4WD (LN16. LN172)/1998.01-2005.07/5L-E 2986 Diesel 71 kW 97 BHP (1998.01 - 2005.07) ,
